Description	Function	Product pictures
 Adaptors	 Adaptor plates, blocks and posts allow integration of components from other vendors as well as combining Luminos positioners of differing sizes into a complete system.
Base Plates	Base plates provide a convenient way to assemble and transport any configuration of Luminos positioners and accessories.
Contact Sensing System	The Luminos Contact Sensing System facilitates the alignment of optical fibers by measuring contact force levels and allowing the determination of a zero-gap position.
Fiber Holders	The FH003（Standard version）and VFH（Vertical version) are designed for use on the Luminos I3000, I3005, I5000, I5005, I6000, I6005 and RYP3000 positioners. The Extended V-Groove fiber holder is longer to reach out to the coincident rotation point. Special slide attachment features allow this fiber holder to be user adjusted for the desired projection. The Vertical Fiber Holders place the tips of the projecting fiber at a rotation point that is maintained as the fiber angle is re-adjusted.

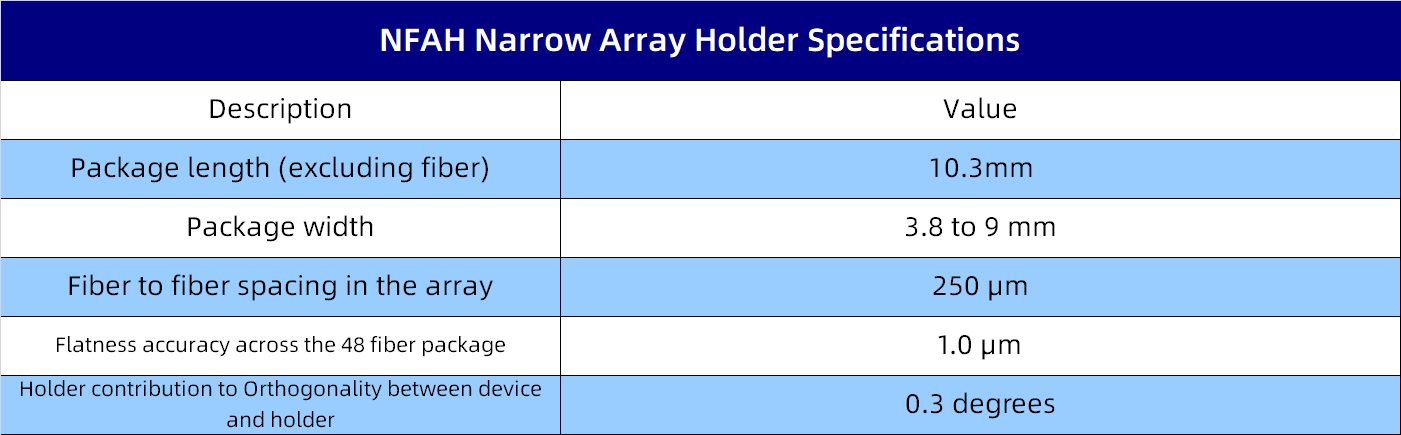

Array Holders	Universal Array Holder version allows 2 to 48 fiber arrays. Narrow Array Holder version’s tip design specifically to enable compact “X” configuration PIC alignments with up to 4 fiber arrays converging on one substrate. Each arrays allow 1-16 fiber
 LINOS Rails	 LINOS rails provide a quick and easy way to manually move Luminos positioners beyond their small, precise travel.
Vacuum Holders	 Vacuum part holders deliver a quick and reliable method to hold fragile planar devices such as small chips, complex waveguides, optical crystals etc.
Positioner Side Damper	For the fastest settling time when using stepping motor actuators at high speed, consider adding the Luminos Frictionless Positioner Side Damper to achieve critical damping.
