Luminos Adaptors

Model Number：AdaptorsBrands：LuminosRichen Code：900XXX00

Adaptor plates, blocks and posts allow integration of components from other vendors as well as combining Luminos positioners of differing sizes into a complete system. Visit the Applications page to view some examples of Luminos adaptors in use.

Download

Consultation

close

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

Overview
Adaptor plates, blocks and posts allow integration of components from other vendors as well as combining Luminos positioners of differing sizes into a complete system. Visit the Applications page to view some examples of Luminos adaptors in use.

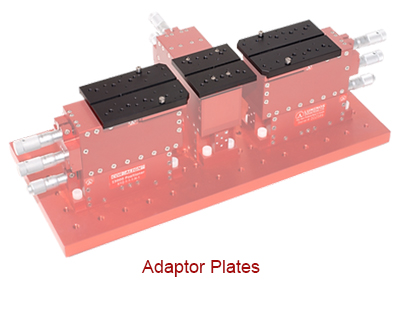

Adaptor Plates
Adaptor plates allow you to integrate any Luminos positioner with other types of optical equipment. Each plate is designed as a detachable component which allows other optical equipment to be easily, securely and precisely attached to Luminos positioners.
Luminos adaptor plates are compatible with Thorlabs Multi-Axis Stages Including the NanoMax and MicroBlock series Fiber Alignment Stages. They are equipped with a 3mm wide center slot and rows of spaced 2mm, 3mm and 4mm tapped holes for mounting a wide variety of Thorlabs Keyway Accessories.

Adaptor Blocks
Adaptor Blocks allow integration of different Luminos positioners at a common mounting height based on either a 3 Axis or 5/6 Axis system height. The most common is a “T” configuration with Input & Output stages (either 3 Axis or 5/6 Axis) and a Center device Stage (either 1 Axis or 3 Axis), used to position a waveguide or Photonics Integrated Circuit, often held by a Luminos Vacuum Part Holder.

Adaptor Posts
Luminos Adaptor Posts provide stationary mounts equivalent to Luminos 3 Axis and 5/6 Axis Positioners. The posts can mount directly onto optical tables, or be used with Luminos Linos Rails for convenient large coarse travel capability.

Order Information

Adaptor Plates

Richen Code

Model Number

Function

Product Pictures

90016500

L-AMA003

L-AMA003 - Thorlabs/Melles Griot Transverse Mounting Adaptor Plate
Adaptor Plate, Fixed Mount, Melles Griot Transverse Mounting Plate 17AMA011 equivalent.
Plate thickness 0.241" (6.1 mm)

1-2

90016600

L-AMA004

L-AMA004 - Thorlabs/Melles Griot Inline Mounting Adaptor Plate
Adaptor Plate, Fixed Mount, Melles Griot Inline Mounting Plate 17AMA001 equivalent.
Plate thickness 0.241" (6.1 mm)

未标题-2-2

Adaptor Blocks

Richen Code

Model Number

Function

Product Pictures

90002800

L-ADP001-SI

L-ADP001-SI - 3 or 4 Axis to 5 or 6 Axis Height Adaptor Block (Metric)

Adaptor Block with metric M6 hole pattern raises any Luminos 3 or 4 Axis Series Positioner to the height of any Luminos 5 or 6 Axis Series Positioner.

Overall height: 31.8 mm

未标题-2-4

90007900

L-ADP001-I

L-ADP001-I - 3 or 4 Axis to 5 or 6 Axis Height Adaptor Block (Imperial)
Adaptor Block with Imperial 1/4-20 one inch grid hole pattern raises any Luminos 3 or 4 Axis Series Positioner to the height of any Luminos 5 or 6 Axis Series Positioner.
Overall height: 1.25"

未标题-2-6

90016700

L-ADP002

L-ADP002 – 3 Axis RYP to 3 Axis Adaptor Block (Universal Fit)
Adaptor Block raises a Luminos 3 Axis RYP3000 Roll Yaw Pitch Series Positioner to the height of any Luminos 3 Axis Series Positioner.
Overall height: 1.84” (46.7 mm)

未标题-2-7

90016800

L-ADP003-SI

L-ADP003-SI – 1 Axis to 3 Axis Adaptor Block (Metric)
Adaptor Block with metric M6 hole pattern raises a Luminos I1000 Z Axis Linear positioner to the height of any Luminos Series 3 Axis positioner.
Overall height: 46.1 mm

未标题-2-7

90016900

L-ADP003-I

L-ADP003-I – 1 Axis to 3 Axis Adaptor Block (Imperial)
Adaptor Block with Imperial 1/4-20 one inch grid hole pattern raises a Luminos I1000 Z Axis Linear positioner to the height of any Luminos Series 3 Axis positioner.
Overall height: 1.815”

未标题-2-66

90017000

L-ADP004-SI

L-ADP004-SI - 1 Axis to 5/6 Axis Adaptor Block (Metric)

Adaptor Block with metric M6 hole pattern raises a Luminos I1000 Z Axis Linear positioner to the height of any Luminos Series 5 or 6 Axis positioner.
Overall height: 78.9 mm

未标题-2-78

90017100

L-ADP004-I

L-ADP004-I - 1 Axis to 5/6 Axis Adaptor Block (Imperial)
Adaptor Block with Imperial 1/4-20 one inch grid hole pattern raises a Luminos I1000 Z Axis Linear positioner to the height of any Luminos Series 5 or 6 Axis positioner.
Overall height: 3.065"

未标题-2-78

Adaptor Posts

Richen Code	Model Number	Function	Product Pictures
90017200	L-PST001-SI	L-PST001-SI – Post, 3 Axis Equivalent, Metric Post PST001-SI is equivalent in height and mounting pattern to a Luminos 3 Axis XYZ linear positioner. Compatible with LINRC-PST-SI Overall height: 100 mm
90017300	L-PST001-I	L-PST001-I – Post, 3 Axis Equivalent, Imperial Post PST001-I is equivalent in height and mounting pattern to a Luminos 3 Axis XYZ linear positioner. Compatible with LINRC-PST-I Overall height: 3.94”
90003800	L-PST002-SI	L-PST002-SI – Post, 5/6 Axis Equivalent, Metric Post PST002-SI is equivalent in height and mounting pattern to a Luminos 5/6 Axis XYZ linear positioner. Compatible with LINRC-PST-SI Overall height: 131.8 mm
90017400	L-PST002-I	L-PST002-I – Post, 5/6 Axis Equivalent, Imperial Post PST002-I is equivalent in height and mounting pattern to a Luminos 5/6 Axis XYZ linear positioner. Compatible with LINRC-PST-I Overall height: 5.19”

Description
Function
Product pictures

Adaptors

Adaptor plates, blocks and posts allow integration of components from other vendors as well as combining Luminos positioners of differing sizes into a complete system.

Base Plates

Base plates provide a convenient way to assemble and transport any configuration of Luminos positioners and accessories.

Contact Sensing System

The Luminos Contact Sensing System facilitates the alignment of optical fibers by measuring contact force levels and allowing the determination of a zero-gap position.

Fiber Holders
The FH003（Standard version）and VFH（Vertical version) are designed for use on the Luminos I3000, I3005, I5000, I5005, I6000, I6005 and RYP3000 positioners.
The Extended V-Groove fiber holder is longer to reach out to the coincident rotation point. Special slide attachment features allow this fiber holder to be user adjusted for the desired projection.
The Vertical Fiber Holders place the tips of the projecting fiber at a rotation point that is maintained as the fiber angle is re-adjusted.

Array Holders
Universal Array Holder version allows 2 to 48 fiber arrays.
Narrow Array Holder version’s tip design specifically to enable compact “X” configuration PIC alignments with up to 4 fiber arrays converging on one substrate. Each arrays allow 1-16 fiber

LINOS Rails

LINOS rails provide a quick and easy way to manually move Luminos positioners beyond their small, precise travel.

Vacuum Holders

Vacuum part holders deliver a quick and reliable method to hold fragile planar devices such as small chips, complex waveguides, optical crystals etc.

Positioner Side Damper

For the fastest settling time when using stepping motor actuators at high speed, consider adding the Luminos Frictionless Positioner Side Damper to achieve critical damping.
