SEIKOH GIKEN SSC-AN5 Series SC Simplex Adaptor
Model Number:SSC-AN5227001GBrands:SEIKOH GIKENRichen Code:80164500

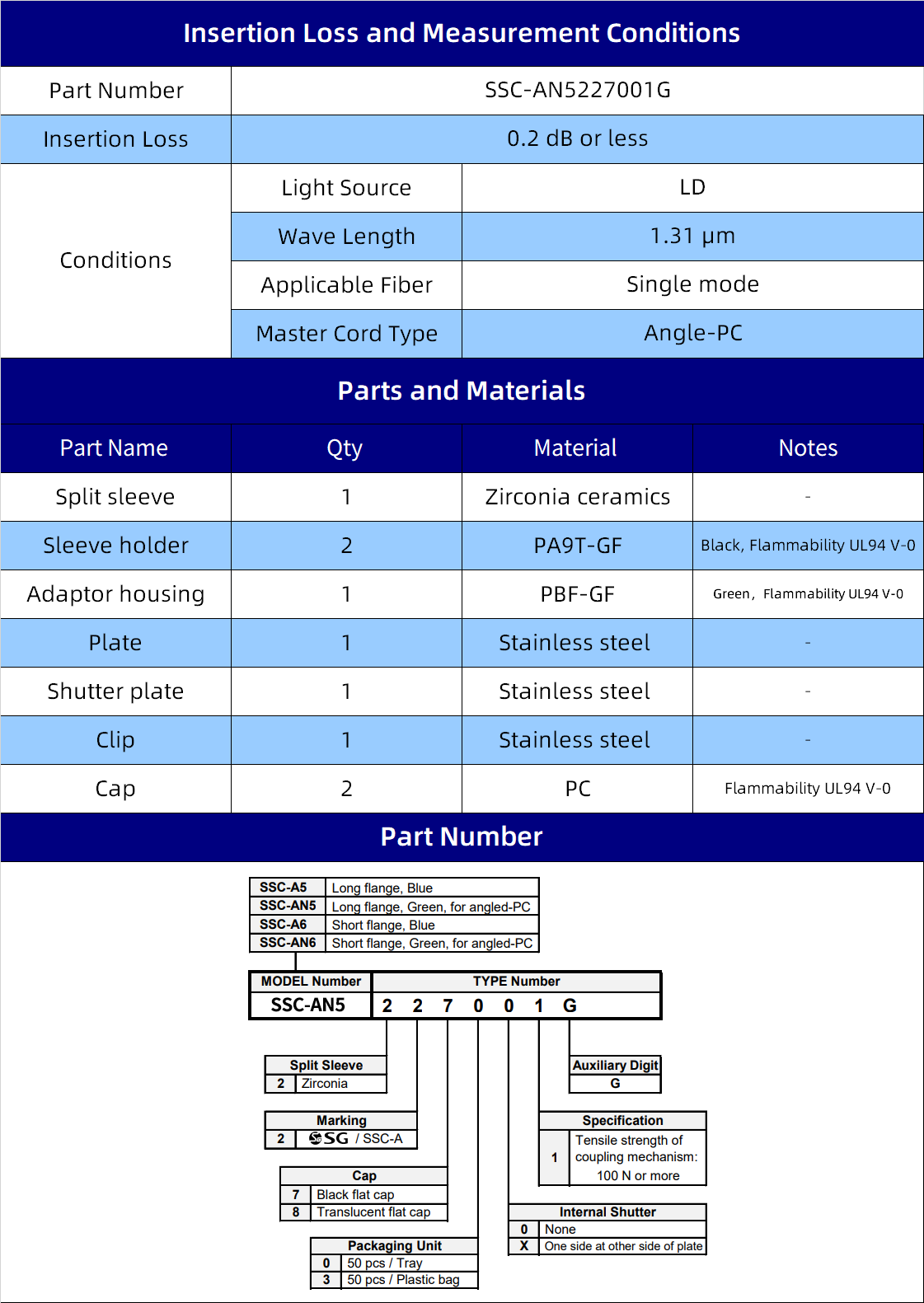

SEIKOH GIKEN SSC-AN5 Series SC Simplex Adaptor. Insertion Loss:0.2 dB or less,Light Source:LD,Wave Length:1.31 µm,Applicable Fiber:Single mode,Master Cord Type:Angle-PC.

SEIKOH GIKEN SSC-AN5 Series SC Simplex Adaptor. Insertion Loss:0.2 dB or less,Light Source:LD,Wave Length:1.31 µm,Applicable Fiber:Single mode,Master Cord Type:Angle-PC.

Features
• IEC 61754-4 compliant
• Telcordia GR-326-CORE Issue 4 compliant
• Insertion loss ≤0.2dB (Singlemode)
• Precision Zirconia split sleeve
• Automatic Metal Shutter blockig optical light for eye protection also available
• Unique design of Automatic Metal Shutter has extreme durability to perform no position gap of shutter to secure optical power blocking
• RoHS compliant


Precautions
• For storage of the product, keep in the packing bag and keep away from corrosive gas, high-temperature and humidity, extreme-low temperature and direct sunlight.
• Contamination, oil, sweat and others debris on the ferrule end face may influence the performance of the product. If contamination is on the ferrule end face, wipe the end face with the end face cleaner.
• When discarding this product, please follow the regulations of your own country.
