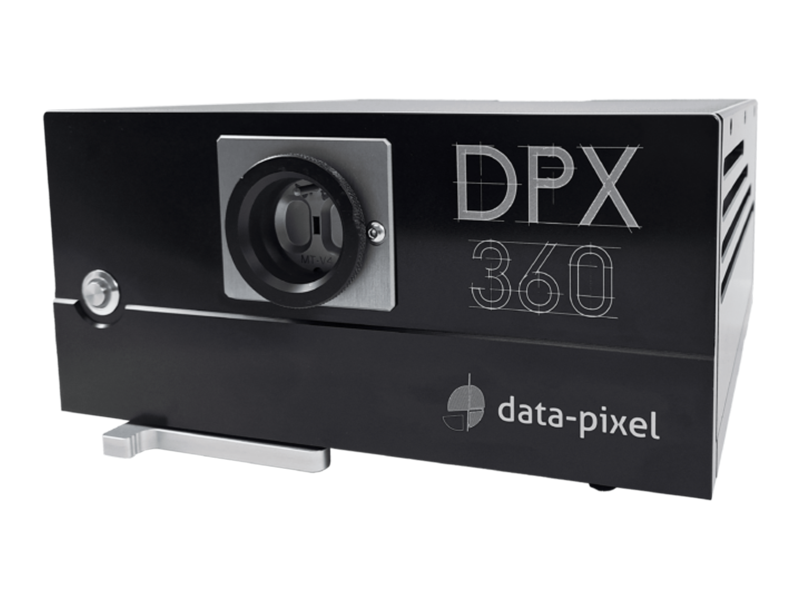

DPX360 is a unique piece of equipment that combines a state-of-the-art interferometer and a high-resolution microscope into one powerful instrument for Multi-Fiber and Single-Fiber connectors.
DPX360 can detect defects and measure the geometry of optical fiber connectors simultaneously, with unequalled performance.

The MPO connector is inserted only once, scanned in less than 15 seconds, and the DPX360 automatically provides pass/fail results for both inspection and interferometry.

The microscope of the DPX360 uses our Blink software platform integrating an Al based Deep Learning Algorithm. The benefit of this technology is to improve very significantly the quality of defect analysis. It also allows to teach the software to recognize new defect types based on the user’s specific requirements. This process is unlimited and the software provides highly repeatable pass/fail results.

DPX360 combines and even surpasses the performance of Daisi MT and D scope MT, which have proven themselves in terms of precision, repeatability, and reliability in the most demanding production environments.

Features
• True phase shifting interferometer
• High-resolution microscope
• Dual mode: inspection and interferometry
• Ultra-fast 2D and 3D cycle time < 15sec
• Driven by Blink software with Deep Learning for defect analysis
• Defect size detection < 0.5μm
• Supports all MT/MPO, Single Fiber and VSFF connectors
• Compliant with the latest industry standards (IEC by default)
