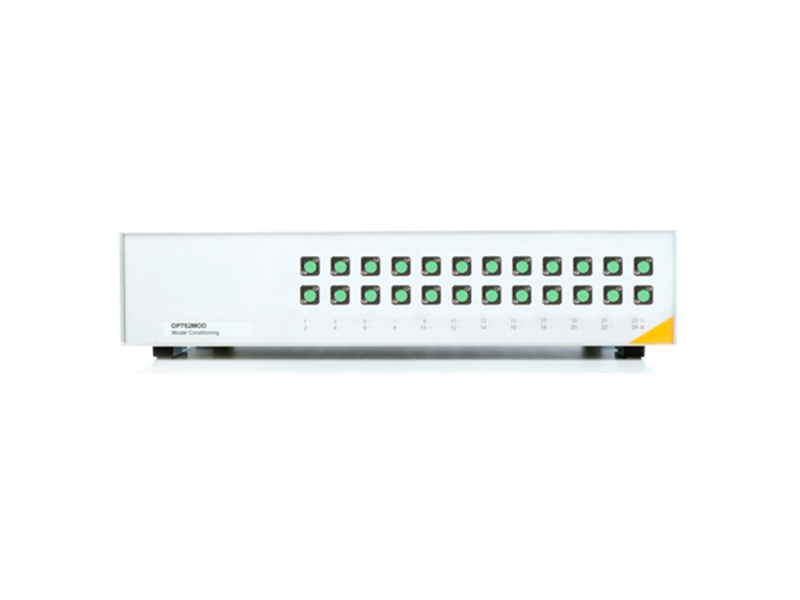

Fiber optic mode field regulator OP752 MOD
Model Number:OP752-MODBrands:OptoTestRichen Code:82008500
By using OptoTest's OP752 multi-channel mode field regulator, you can quickly meet the requirements for annular flux and emission conditions for M80 or 70/70 in multi-channel testing. When used in conjunction with OPTOTEST's LED light source (OP750 series) or return loss instrument (OP940 series), you do not need to manually wind the mold to meet the emission conditions.

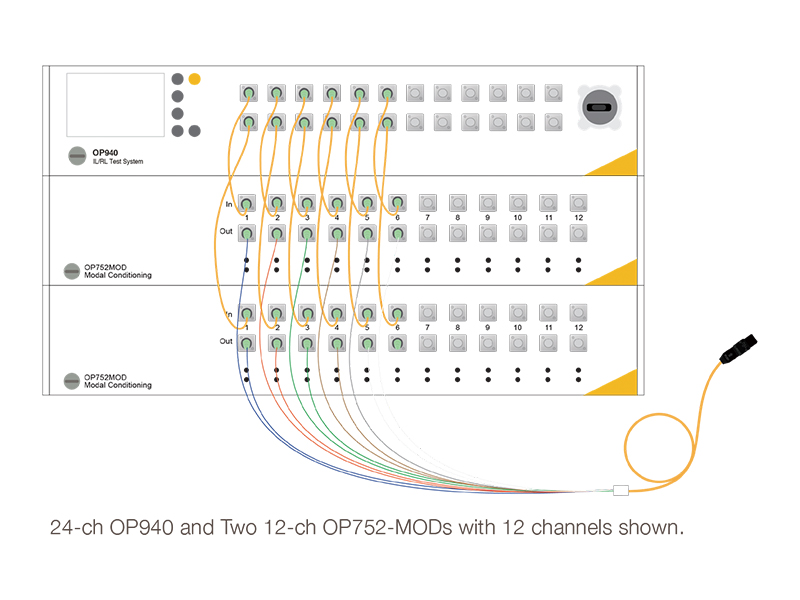

Each OP752 mode field regulator has 12 channels, which can increase every 12 channels to 24 channels, 48 channels to 200 channels, and the panel connectors are FC and SC, PC or APC end faces

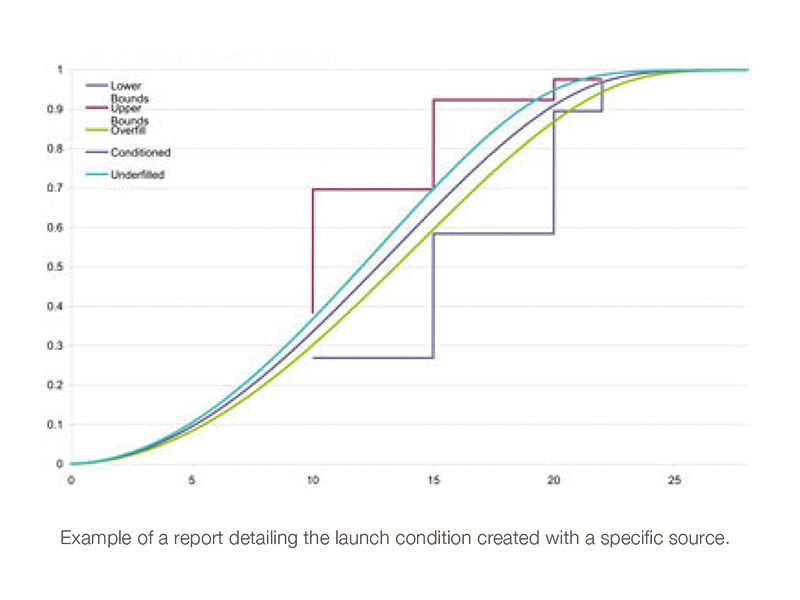

Each OP752 is designed with customized emission conditions for the light source, which can then be used to calibrate the instrument. It also comes with a factory report like the one on the right, detailing the emission conditions customized for a specific light source.
