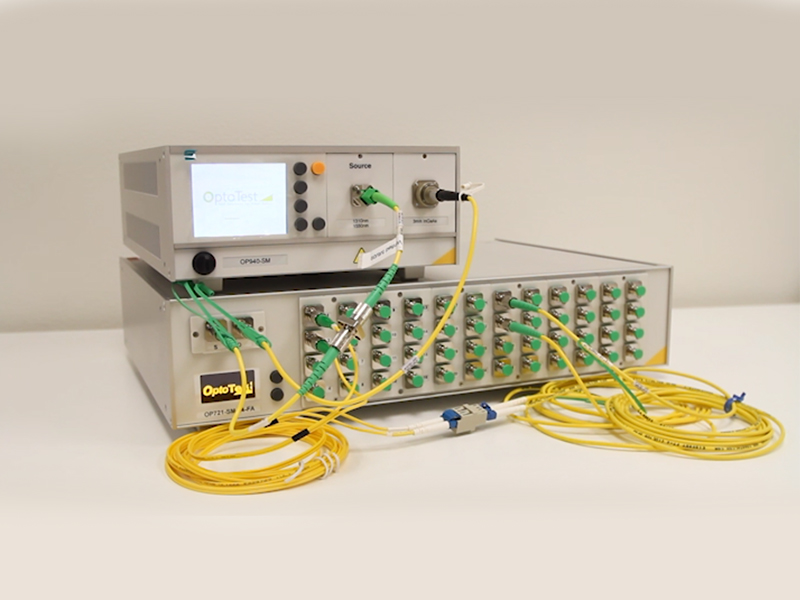

OP940 fully automatic single channel winding free insertion loss measuring instrument

Model Number：OP940Brands：OptoTestRichen Code：82071500

The OP940 insertion back loss tester is equipped with a color LDC screen, which has a light reflection scanning mode and can edit PASS/FAIL standards. In addition, OP940 can simultaneously measure the return loss at two positions through the front panel and provide extended functionality. Like other OPTOTEST insertion back loss measurement systems, OP940 measurement back loss does not require manual winding or matching ointment, thus achieving fast and accurate measurement.

Download

OP940

Consultation

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

Fully automatic dual wavelength insertion and return loss simultaneous display

Front panel reflection point tracking

Manually adjust the position of the return loss point and set the calibration value

Perform multi-point loss testing through the front panel

Editable PASS/FAIL standard

Multi version probe selection for measuring single core connected machines and multi-core connectors

On screen help function

Timer function can be set for dwell time setting

The light source is connected to the machine for easy polishing

Color display

Intuitive operability

Can be remotely controlled through USB

Integrated temperature monitoring function

Dynamic range of return loss test:

Single mode, FTTX: 10dB-80dB

Multi mode: 10dB-58dB

Scanning mode, found back loss at 11.8 meters
