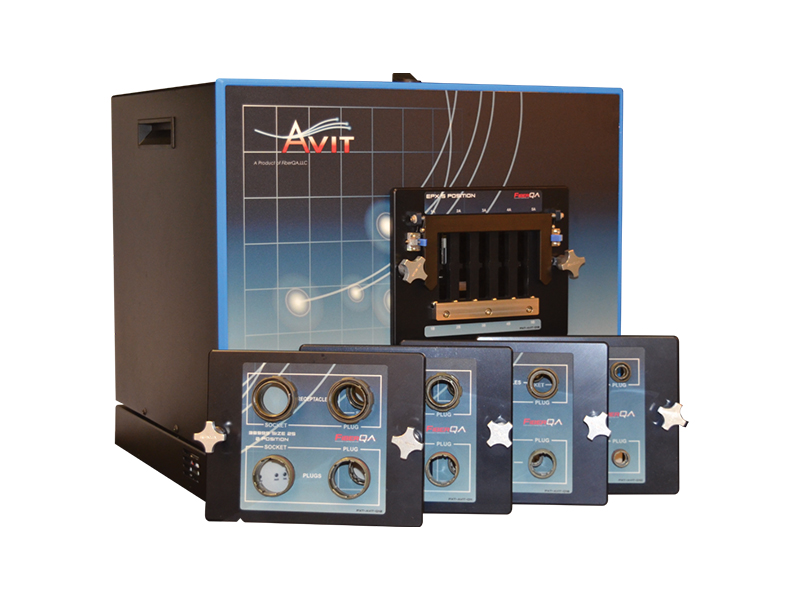

High yield desktop end inspection+cleaning instrument

Fully automatic end inspection+cleaning!

One click fully automatic end inspection+cleaning! Utilize existing or customized fixtures to handle dozens of inserts at once.

The fully automatic AVIT-DT (desktop version AVIT) integrates cleaning functions, resulting in quality inspection differences caused by different operators during the entire end inspection cleaning process.

AVIT-DT is completely operated independently by the instrument and does not require any operator intervention. After pressing the button, the operator no longer needs to pay attention to the instrument, which greatly reduces labor costs and increases output.

AVIT-DT uses strict and mandatory inspection scales to determine whether a device is qualified or unqualified, and at the same time, the production capacity is significantly improved compared to the traditional process of cleaning after end inspection. If a certain plug is not qualified, AVIT-DT automatically cleans and retests it, without the need for the operator to remove the plug for cleaning, thus reducing the risk of damage to the device caused by multiple plugging and unplugging. Before the device is tested, the operator can set the number of end checks to clean, or even turn off the cleaning function.

Data and related images are automatically archived for traceability. The test results can be printed into the specified format of the end inspection quality report.

The AVIT system can be applied throughout the entire supply chain process, from production to installation. After choosing the AVIT system, the manufacturer has seen that the previous large number of returns have been reduced to zero.

AVIT-DT is suitable for large-scale end inspection and cleaning tasks of MT, MPO, military aviation connectors, and other connectors. The 5 "x5" detection window can be equipped with universal or customized fixtures to meet various special needs.

The AVIT series of products have all applied for US patents, and the series also includes large vertical models: AVIT-2020, handheld and probe models: AVIT-CH, AVIT-RH, and AVIT-BP

main features

-Fully automatic

*Auto Focus

*Automatic collimation

*Automatic cleaning/automatic recheck

-Integrated built-in cleaning system

-The software comes with IEC end inspection standards

-User defined end inspection standards

-Automatic saving of test data/images

-Customizable test report format

-Advantages

-High production capacity, suitable for mass inspection

-Reduce labor costs

Eliminate supply chain troubles

• Targeted testing standards
• High repeatability, reproducibility, and reliability test results

-Application field

Manufacturing process quality inspection

Supply Chain Inspection

Quality Control of Military Aviation Products
