Superior & Accurate Polishing Performance

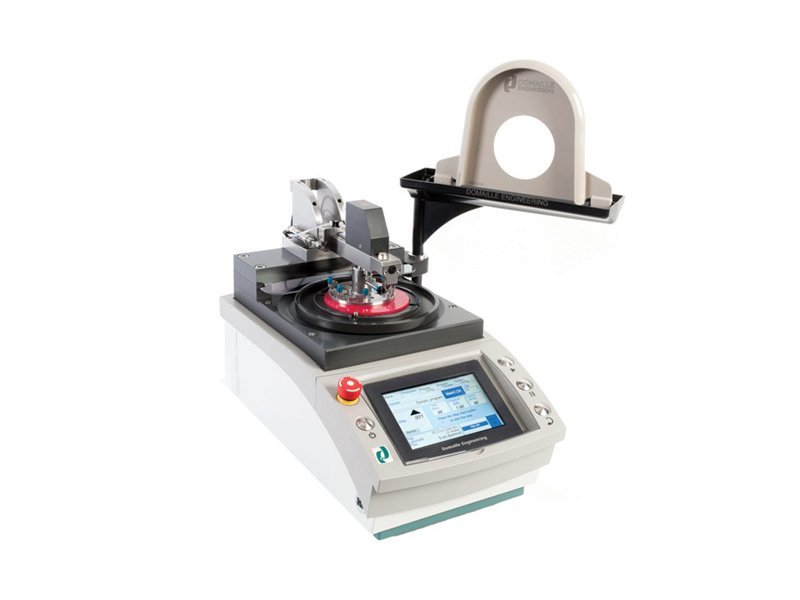

Multifiber applications are made easier with the APM-HDC-5320. Polishing pressures of up to 20 pounds are used to polish a large volume of connectors efficiently while maintaining high levels of quality.
The APM-HDC-5320 has programmable ramp rates for pressure and speed. In order to ensure a superior and accurate final result, the required pressure is automatically recalculated to ensure that the individual connector force remains constant.

Features
• PC-based full-color capacitive touch screen programmable interface for defining and storing unlimited processes and for easy-to-use, error-free operation
• USB is used for machine-to-machine process replication and process backup
• Automatic pressure adjustment to account for a varying number of connectors inserted in the polishing fixture
• Operator step-by-step prompts for film, pad type, and lubricant
• Password protection of system configuration, process configuration, and process transfer modules
• Force, speed, and time displays on the touch screen panel for feedback on process step-specific settings
• Programmable pressure and speed ramp for soft starting polishing cycle
• Programmable film change counter
• Programmable maintenance section
• Pneumatically-controlled polishing pressure provides consistent polishing force regardless of ferrule length
• Pivoting overarm provides easy cleaning of fixtures between steps and quick change of fixtures
• Standard 5″ platen with 8″ option provides flexibility in fixture capacity and polishing film size
• Drip tray & splash guard swivels in for quick and easy cleaning of fixtures between steps
• Quick-change fixtures support all industry-standard connector types, both single and multiple fiber (Fixtures sold separately)
• Available in English, Mandarin, & Spanish
