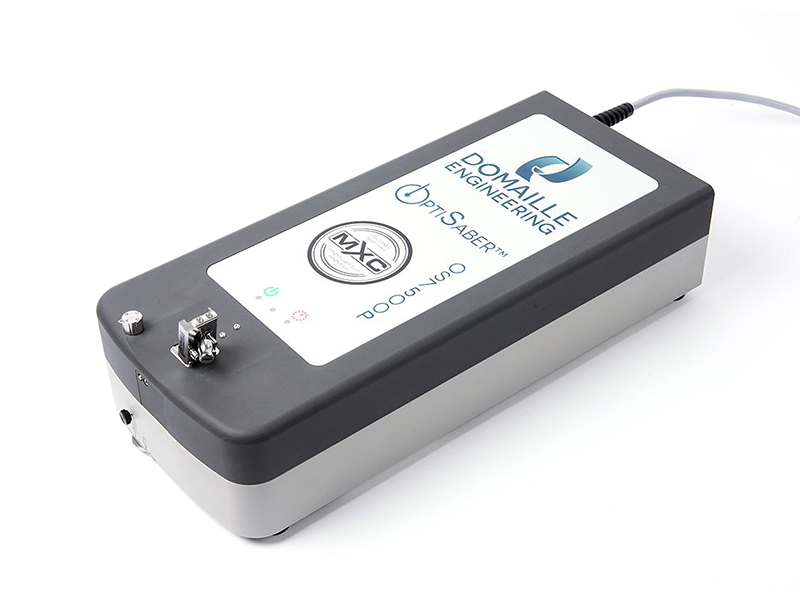

OptiSaber™ Laser Cleaver Series OS7500P
The OptiSaber® OS7500P Laser Cleaving System addresses the need to efficiently cleave optical fibers for the production of PRIZM® Light Turn & MXC® connectors. The OptiSaber® OS7500P allows you to laser cleave up to four rows of 8, 12, or 16 fiber ribbons in one load without the need to remove or reposition the different rows. The OS7500P was rigorously tested at US Conec and approved to meet their PRIZM® Laser Cleave Quality Guidelines, US Conec Doc# AEN-1919.

Features
• Compact: 12.1'' x 11.6''x 14.4''(308 x 294 x 366 mm)
• Fast, Accurate, Saves Critical Floor Space
• Easy activation – switch between hand or foot
•Optimal Precision with 10µm adjustments
• 120/240 volt available

System Performance
• Co-planarity < 20 microns
• Y-axis angle measured across core < 3.5°
• Co-planarity between ribbons < 40 microns
