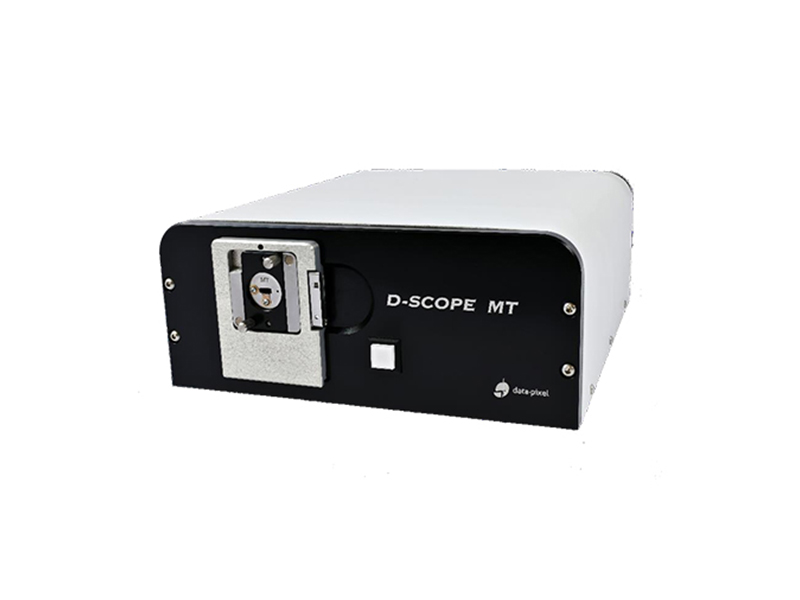

The new D SCOPE MT microscope for MTP/MPO connectors is the fastest on the market.

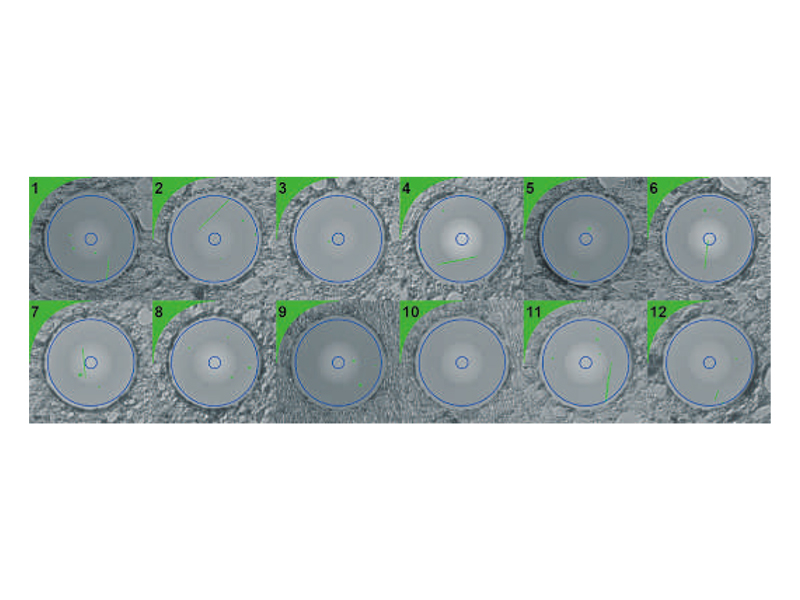

In the same measurement cycle, D Scope MT checks every optical fiber surface condition, and allows the operator to control the cleanliness of the connector endface and guideholes.
The fully automatic D SCOPE MT is the ideal instrument for checking the conformity of connectors to Industry Standards.
With very high measurement accuracy, D SCOPE MT has been designed for use in high volume manufacturing environments or the most demanding laboratories.

Brochure
• Testing of PC/APC connectors and ferrules from 1 to 64 fibers
• Ultra-fast measurement time

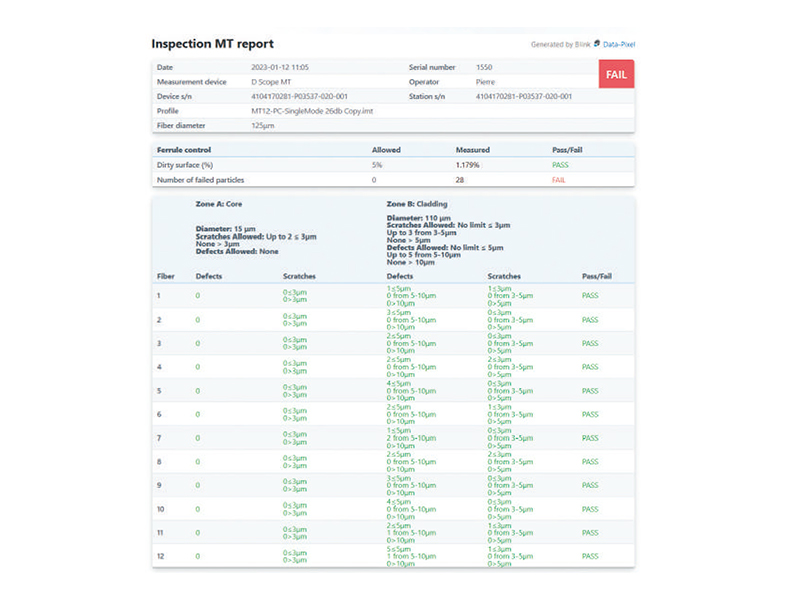

• Automatic Pass/Fail defect analysis
• Automatic focus adjustment
• High resolution optics with defect size detection of 0.3um
• Compliance with Industry standards as lEC 61300-3-35

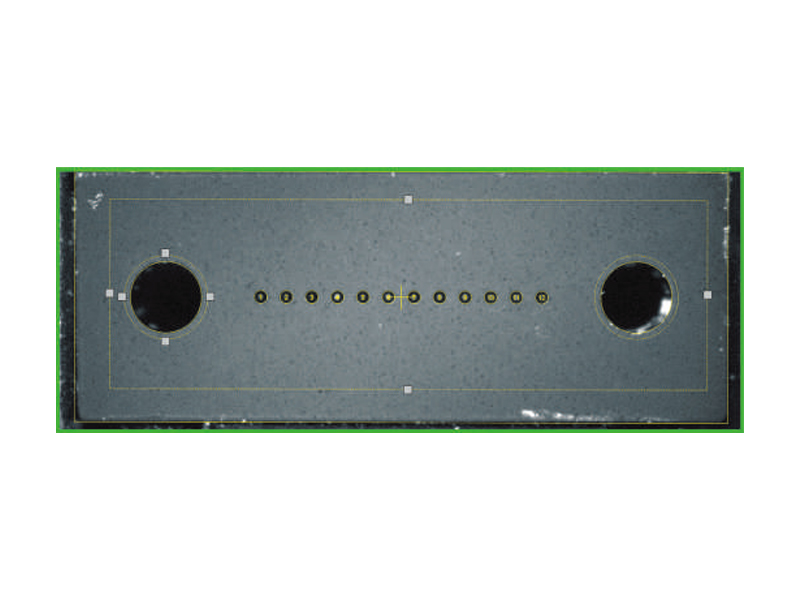

• Real time full connector endface view

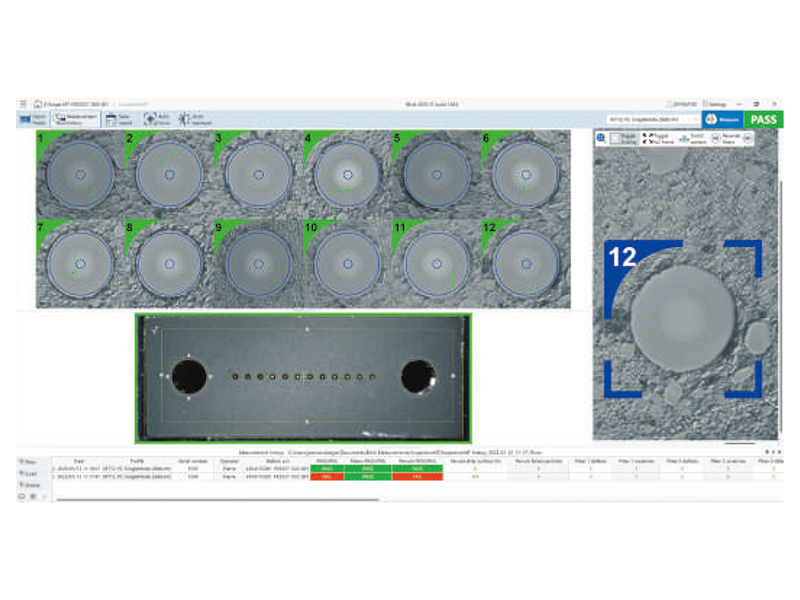

• Intuitive Blink software with database connectivity
• USB powered-no external power supply needed
• Compatible with Desktop pc, laptop, tablet PC
