A READY-TO-USE SOLUTION TO ORIENTATE POLARIZATION MAINTAINING FIBERS INSIDE CONNECTORS

Model Number：DScope-PM/PM AlignerBrands：DATA-PIXELRichen Code：83005000

The DScope-PM and PM Aligner magnifying glasses can accurately adjust the angle between the PANDA polarization maintaining fiber stress unit and the connector key position.

Download

Consultation

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

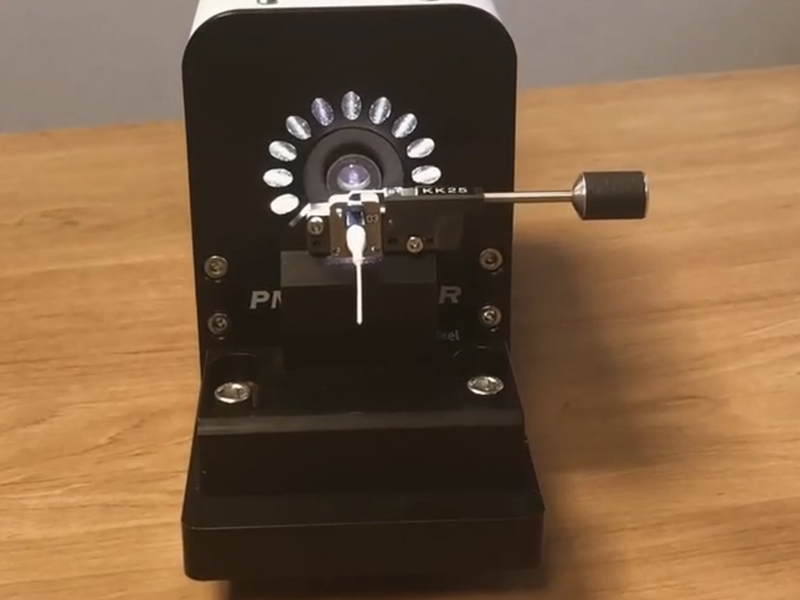

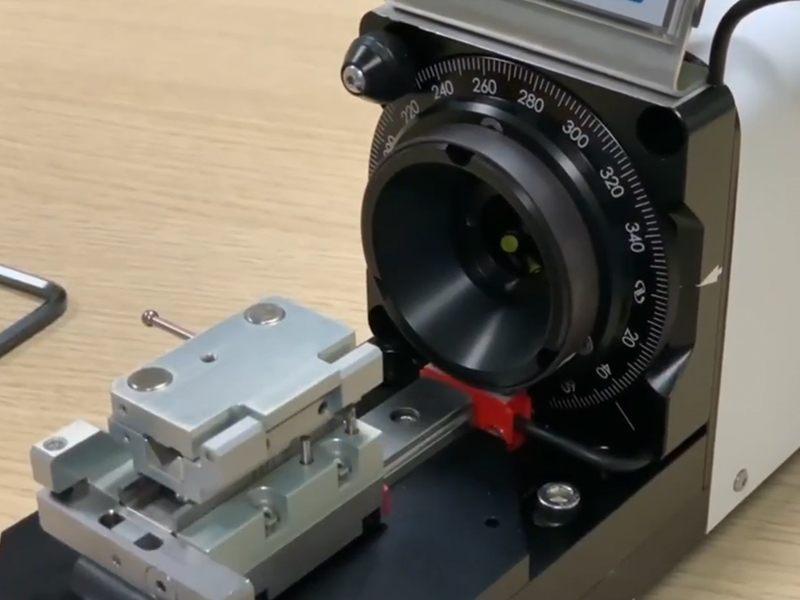

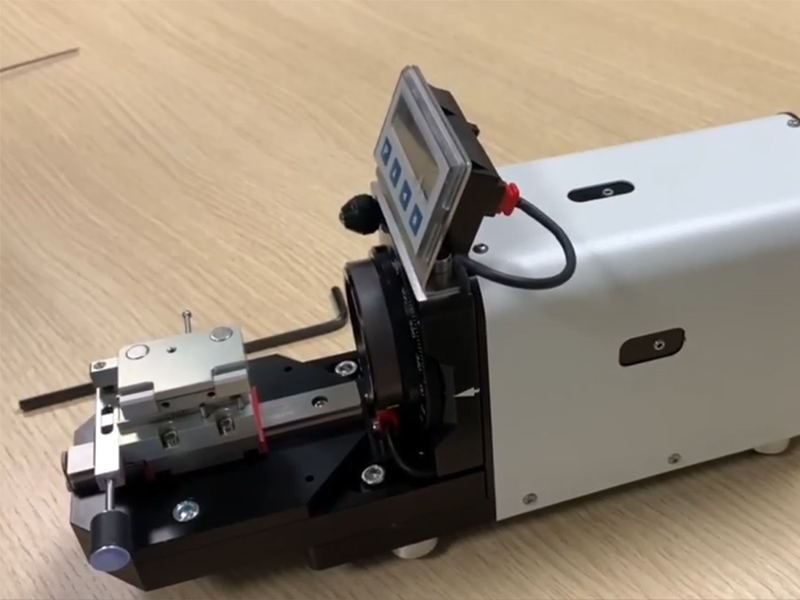

PM Aligner is characterized by its 65mm ultra long working stroke, providing operators with sufficient operating space between the optical measuring head and the connector end face.

DScope PM combines the high-quality images of the Dscope series magnifying glass with low cost and becomes an advantage.

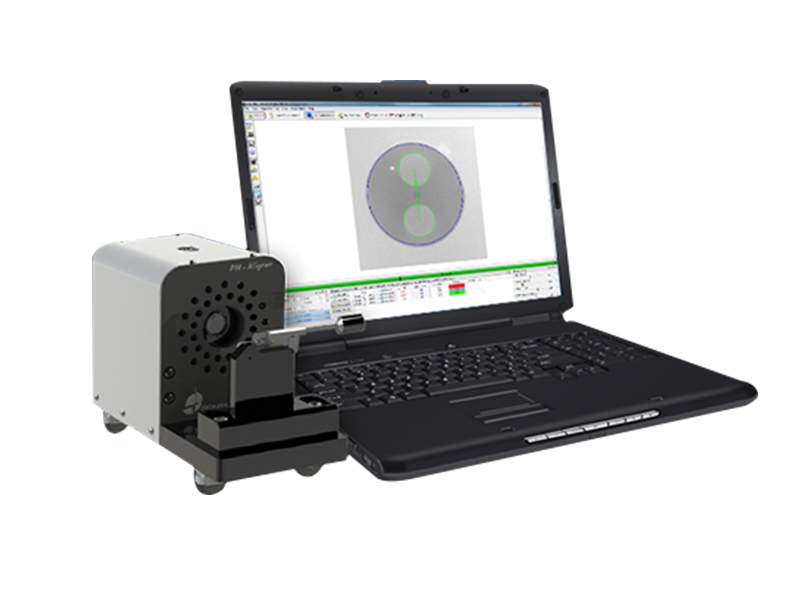

The BLINK-PM software module can measure the angle of the stress element in real-time, which allows the operator to quickly find the desired angle

characteristic

Measurement of PANDA polarization maintaining fiber
65mm ultra long working stroke (PM Aligner)
Automatic real-time measurement
BLINK software is easy to calibrate
Output measurement data in standard CSV format
Database Connection
Measurement and statistics function
