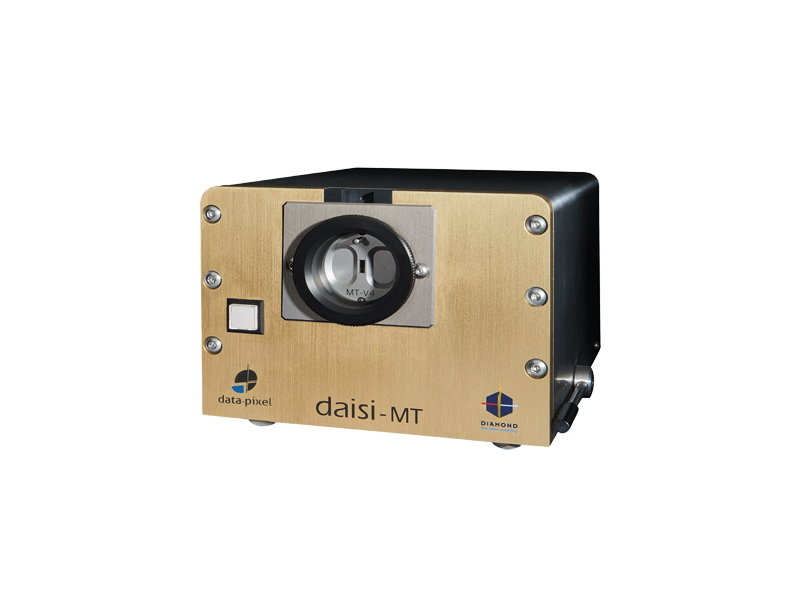

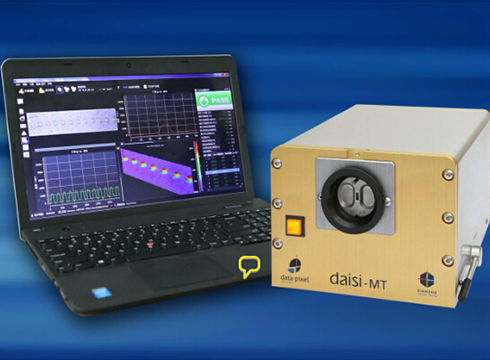

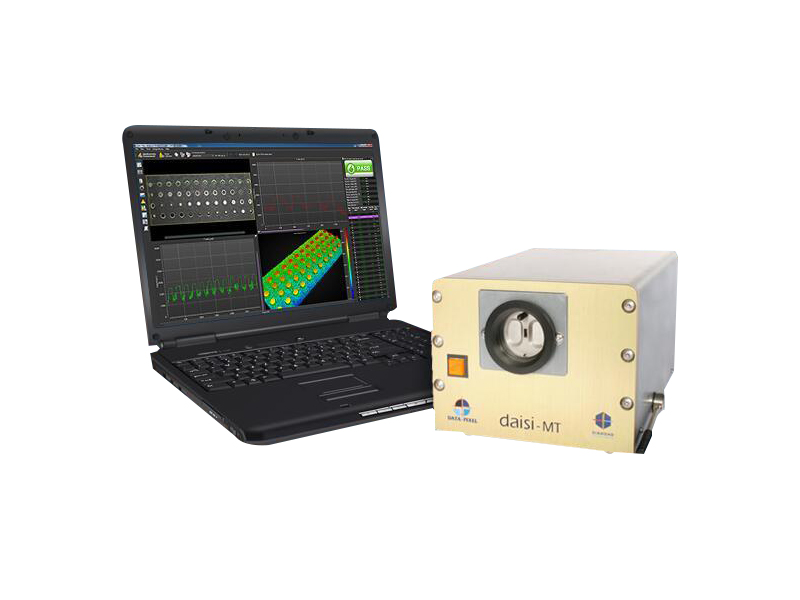

DAISI-MT-V3 INTERFEROMETRY

Model Number：DPLC-DAISI-MT-V3Brands：DATA-PIXELRichen Code：80079100

The world's fastest and most accurate fully automatic single/multi core interferometer, with red and white light sources, is mainly used to measure multiple rows of 12 core MT and multiple rows of 16 core MT inserts and connectors. At the same time, it can measure all single core inserts and connectors.

Download

Consultation

Fill in the information and we will contact you as soon as possible

Introduction
Specification
Accessories
Video
Q&A

Features:

1. Non contact white and red light interferometer

2. Utilize closed-loop control to achieve high-precision scanning in the Z-direction of 30 microns

3. Vibration insensitive

4. Quick automatic focusing

5. Automatic calibration of reference mirror surface

6. Precision and easy to operate core insertion fixture

7. Can measure all types of single core and multi-core PC/APC connectors

8. Low heat LED light source

9. High pixel and high-definition camera

10. Single scan of 96 core optical fibers (12 cores x 8 rows/16 cores x 6 rows)

11. Compliance with international standards

12. Unique DATA-PIXEL fast measurement software

13.12 Core insertion measurement time<9 seconds (6 seconds scanning; 3 seconds simulating end face geometry)

14. Portable

15. Simple one click control

16. Connecting Computers to USB2.0 and USB3.0

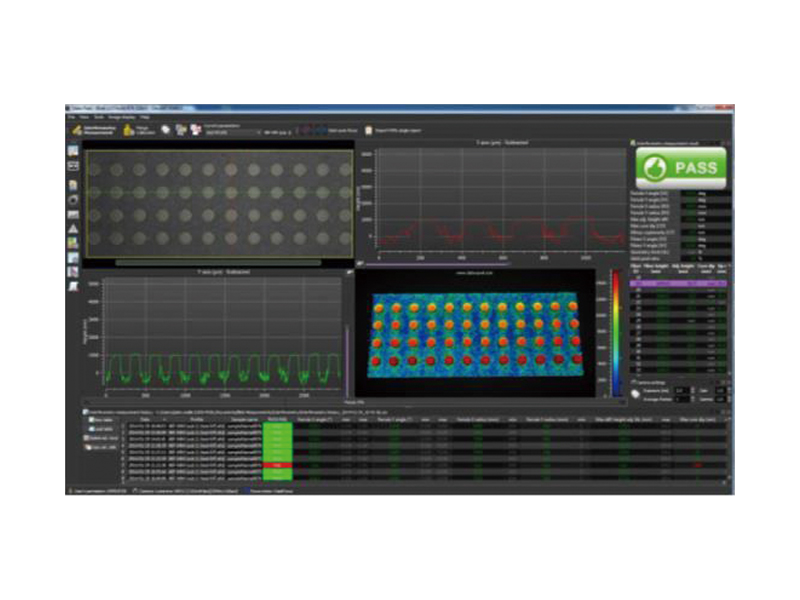

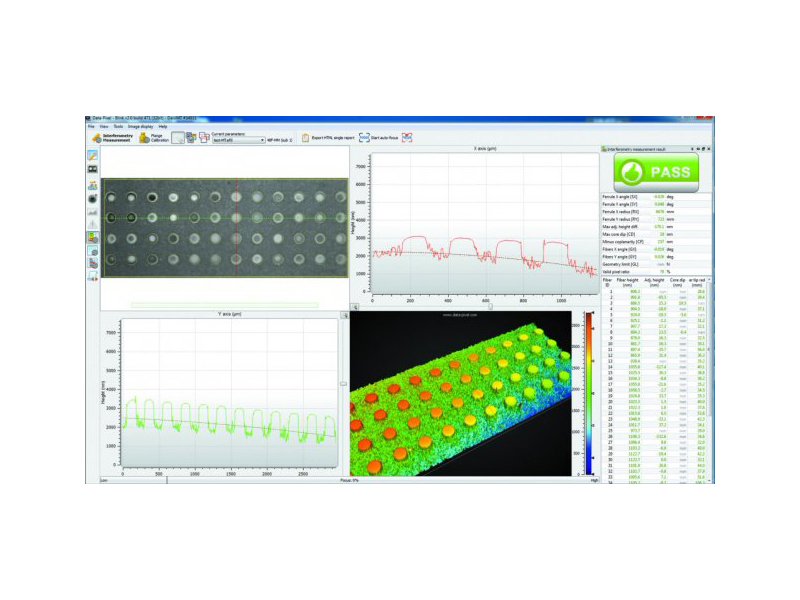

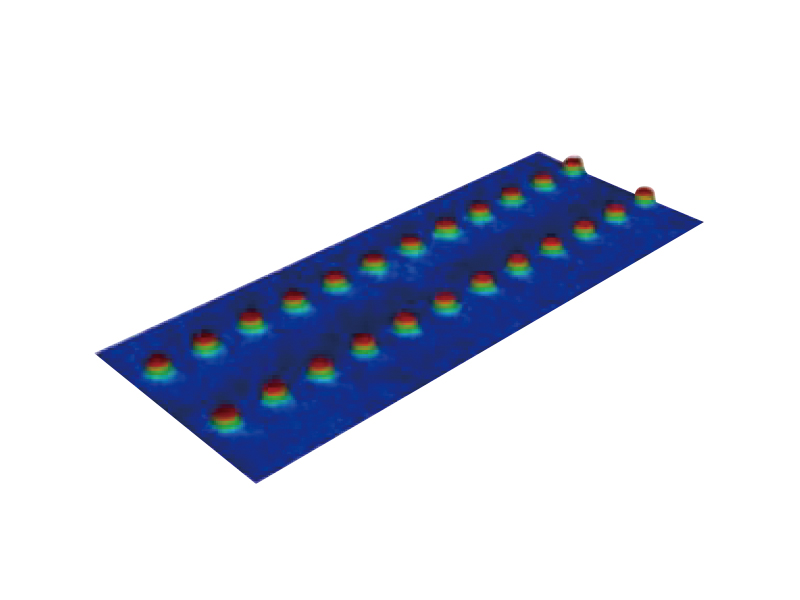

MT-16 Measurement Report
