DESCRIPTION

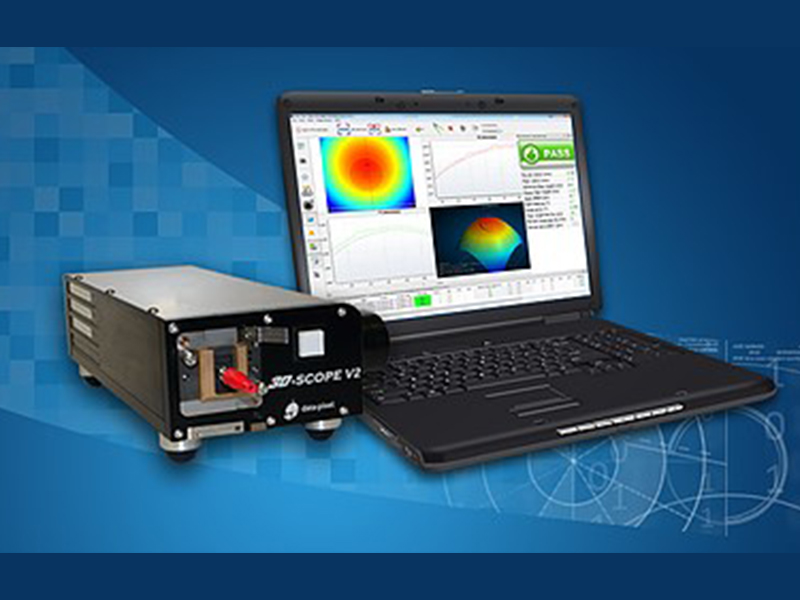

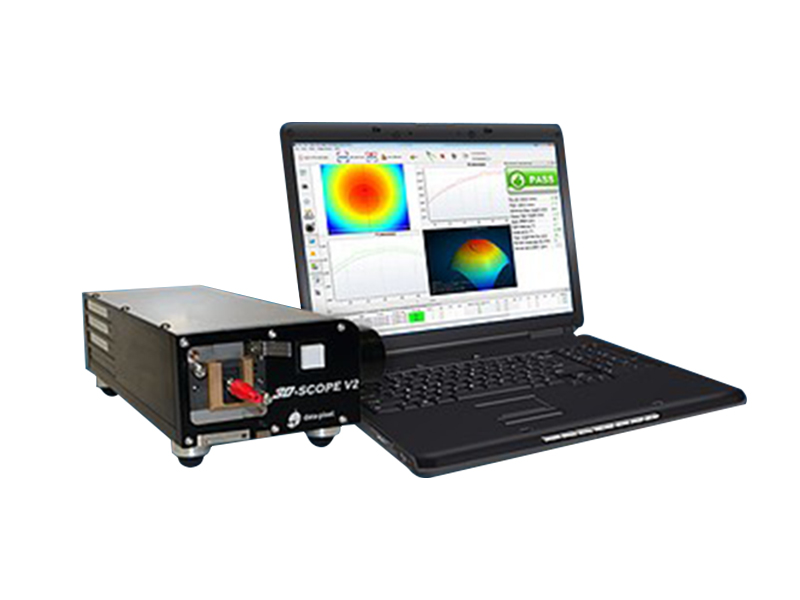

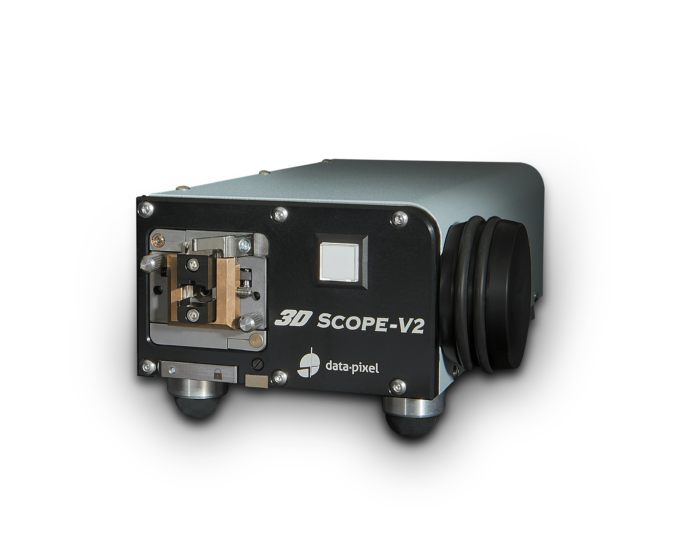

Specifically designed for use in a production environment, 3D Scope-V2 is a robust, compact and easy to use interferometer that brings speed and precision to operators.

3D Scope-V2 supports our Blink software platform. Non-compressed, real time and high quality images are transfered from the hardware to the software via a USB 2.0 link in addition to the automation and control commands.

The 3D Scope-V2 interferometer is fully compliant with Industry Standards.

Blink is a software platform common to all Data-Pixel products. Dedicated plugins supports the Interferometry range of products : 3D Scope-V2, Daisi-V3 and Daisi MT-V3.PDF, HTML and CSV reporting capability with extensive database support (SQL Server, MySQL, ODBC, ORACLE,…) OLE automation support is available for dedicated application

KEY FEATURES

> Measurement of PC and APC connectors, ferrules and bare fibers> Lightning speed measurement cycle (0.5 sec)

> PASS/FAlL result visual feedback via front panel start-buttonLED color

> Integrated PC/APC tilt stage, no APEX re-calibration required>True phase-shifting interferometer

> Vibration insensitive

> Autofocus option

> Compliance with Industry Standards for InterferometerMeasurements

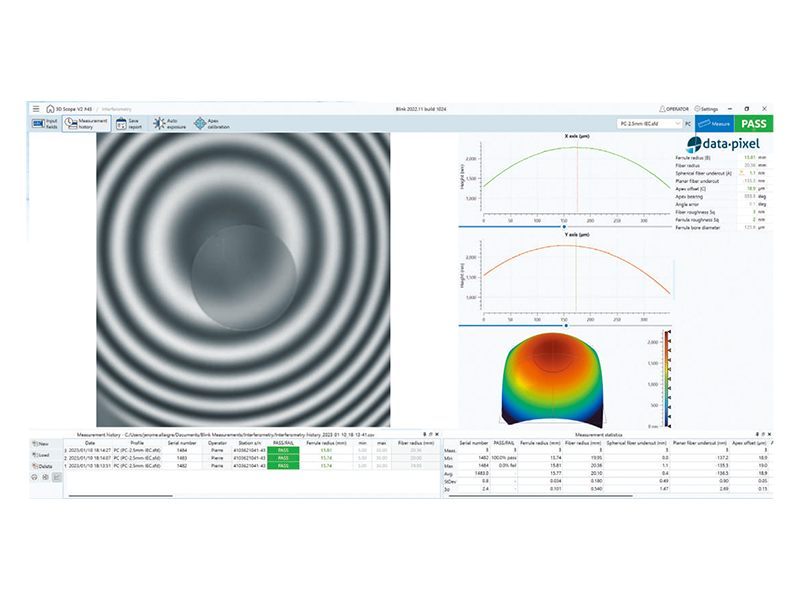

> Intuitive BLINK software, with data-base connectivity

>Measurement report in HTML format

> Compatible with desktop pC, laptop, tablet PC
