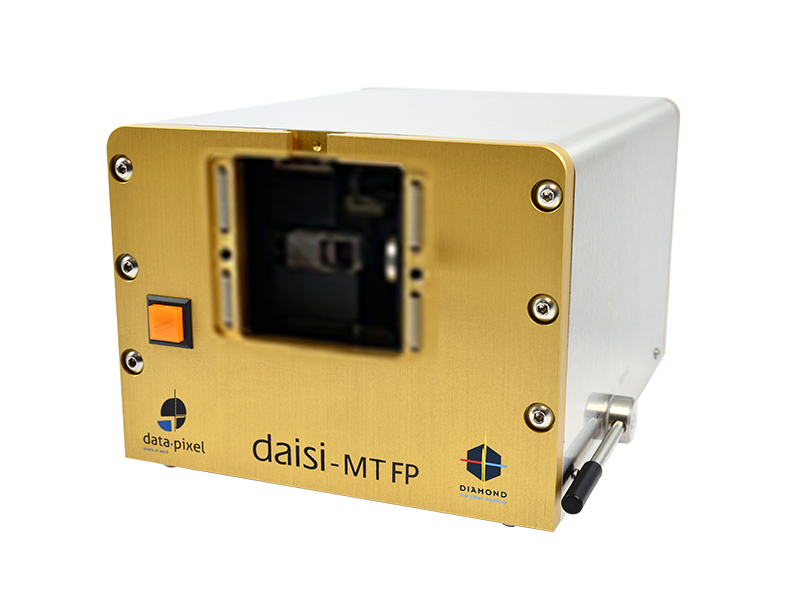

The Daisi MT FP combines the well-known Daisi MT-V3 with the new Floating Pastille fixture technology from DATA-PIXEL (patent US 10,274,397 B2).

This major technological breakthrough for multi-fiber connector fixtures is perfectly suited for highly accurate X/Y endface angle measurements.

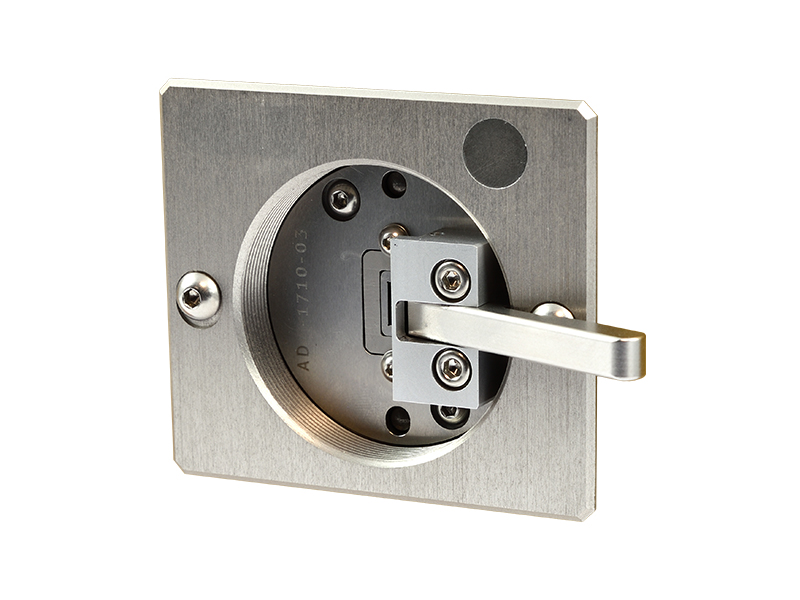

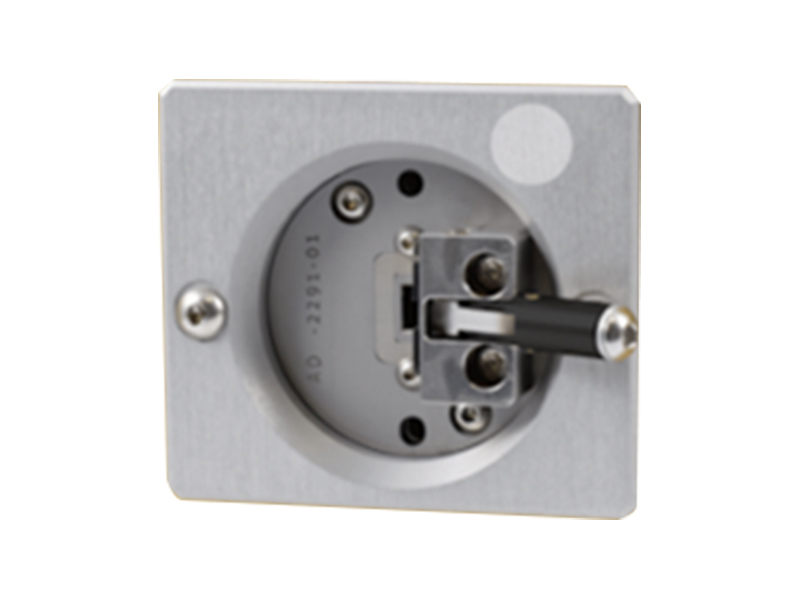

With the Floating Pastille fixtures, measurement results are completely independent from the infiuence of the fiber optic cables and the operator. Floating Pastille is perfectly suitable for the inspection of connectors mounted with heavy cables. With the help of the Floating Pastille, the Daisi MT is now easier to operate, without compromising any of its existing features : accuracy of measurements, reproducibility, speed, robustness. No calibration is now required, as it is factory set, per fixture, by DATA-PIXEL.

Features

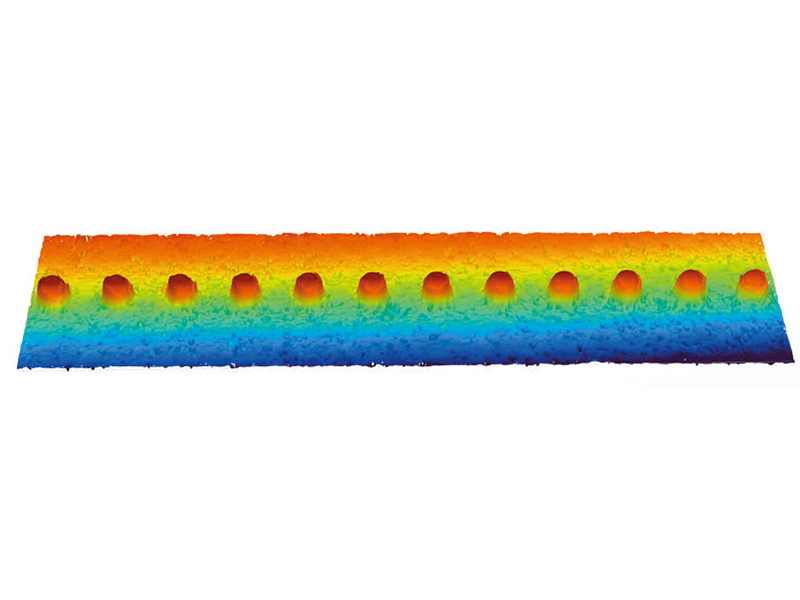

• Combined White-Light and Red-Light phase-shifting interferometer for precise tip radius and core-dip measurement
• Fast Autofocus that simplifies operator’s handling

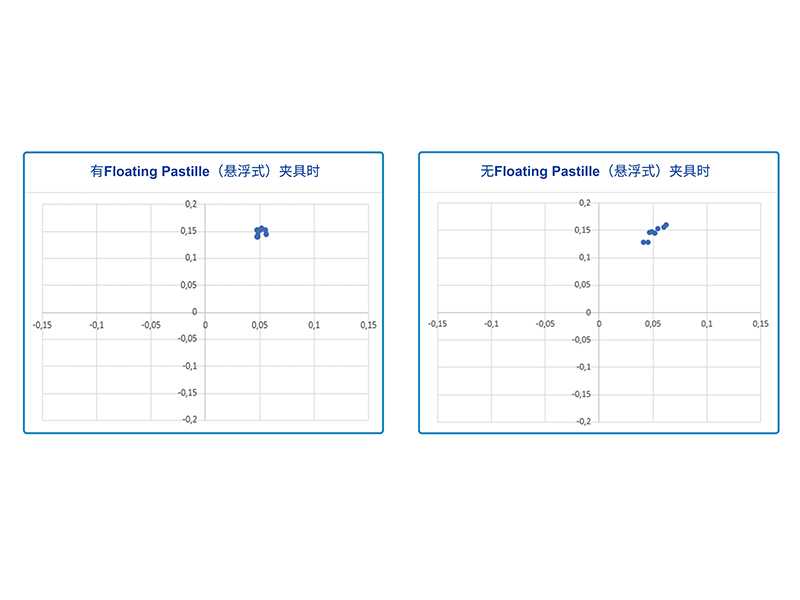

• Very high accuracy and reproducibility for small X/Y angles measurements
• Suitable for field heavy cables, standard small cables MTP/MPO connectors and pigtails with MT ferrules
• No calibration required

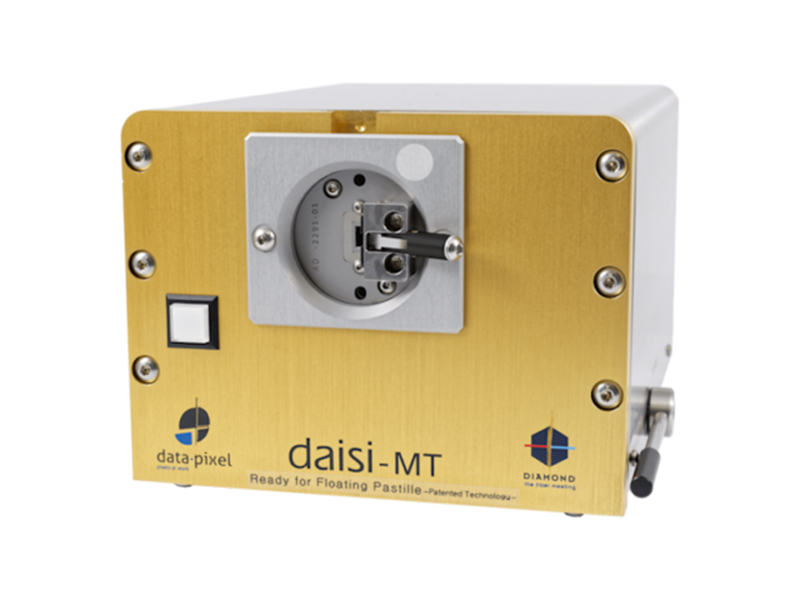

• Floating Pastille Flange is compatible with existing DAISI MT units*
• Vibration insensitive
• High resolution optics and camera for a better resolution
• Large field of view able to scan up to 96 fibers
• Measurement of all Single-Fiber and Multi-Fiber ferrules and connectors (with standard flanges and adaptors)
