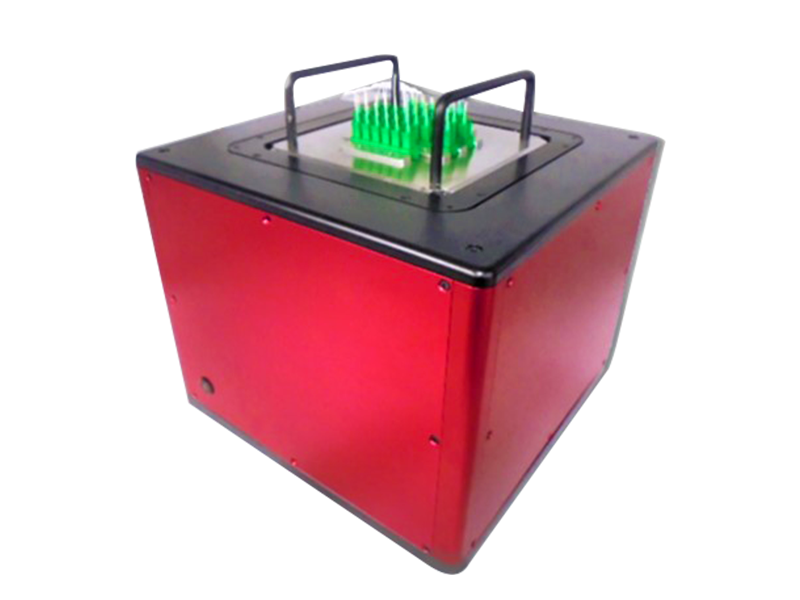

This is an automated inspection system that can perform the inspection by the polishing holders after polished passive elements such as ferrules, and optical connectors/cables.

It's providing innovative efficiency for the manufacturers and their production of optical passive components/devices.

Features
• Providing 4 types of automation (Auto-Position, Auto-Center, Auto-Focus, Auto-Inspection)
• Fast and constant inspection by IEC standards
• End face inspection of connectors while mounted on polishing holder
• Rotator mount for MT ferrule polishing holder (Future development)

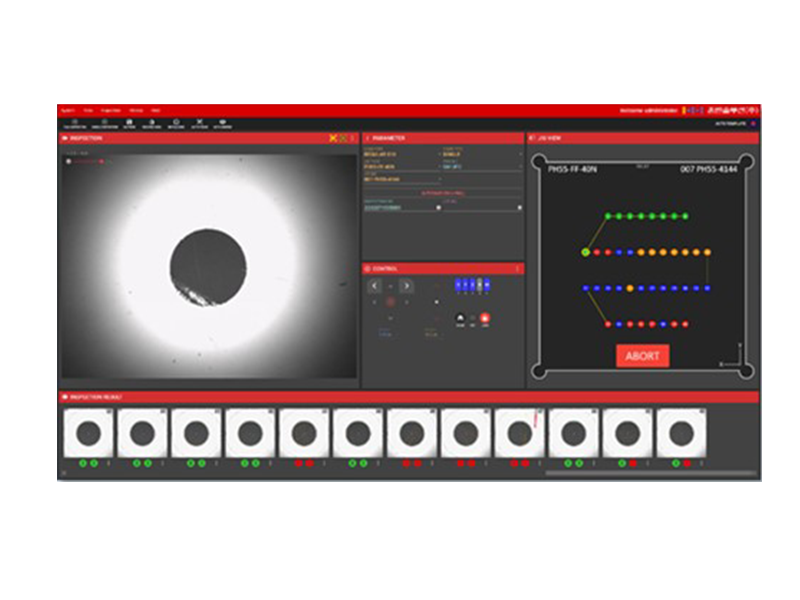

• Intuitive distinguish pass/fail result (Graphic indicator)
• Enables data management (Reporting, Statistics)
• Barcode scanning for automation (Action on Scan option) inspection
• Support central data collection
• Support all types of polishing holders layout
• Store data with S/N of each polishing holder
• Easy import/export polishing holder profiles
• Less than 6sec per port for Inspection (Positioning,Auto Focusing and Save a result)
• Inspection Profile according to IEC (Create/Edit/Delete)
• Allow Full inspection and Single inspection

APPLICATIONS
• Pre-inspection after polished connectors at the manufacturer
• Final inspection of Passive components & assembly
• Detecting Scratch, Pit, Contamination on connector end face
• Management of polishing holders quality
