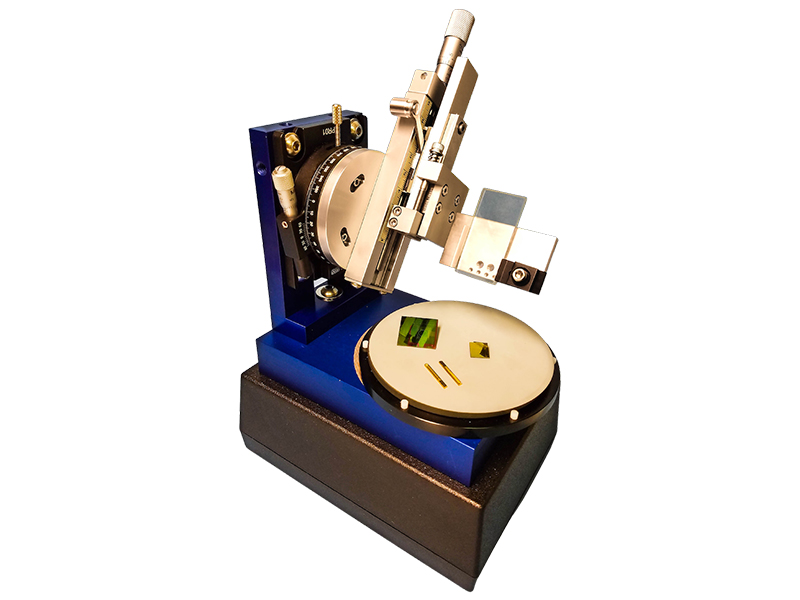

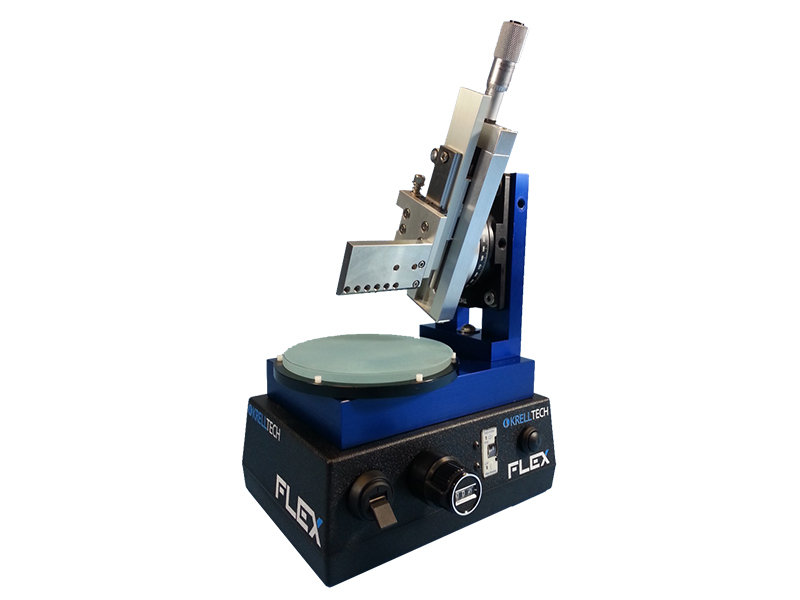

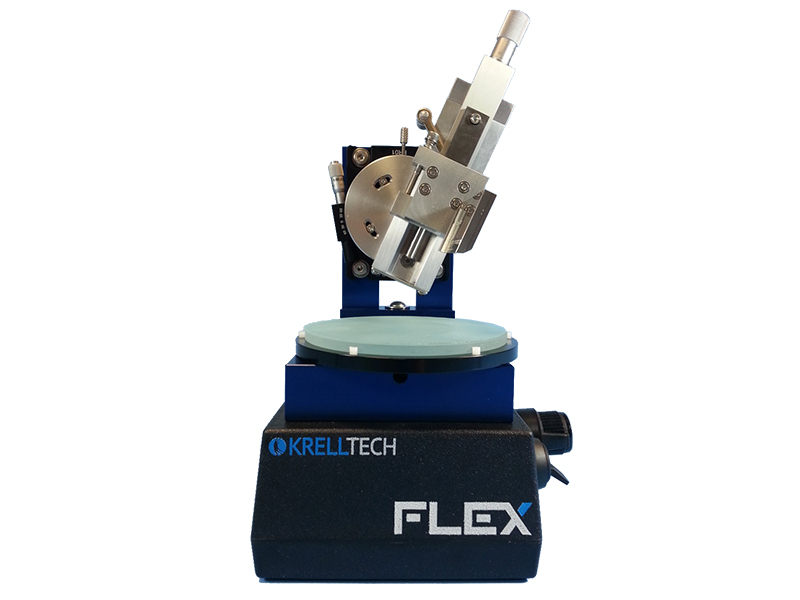

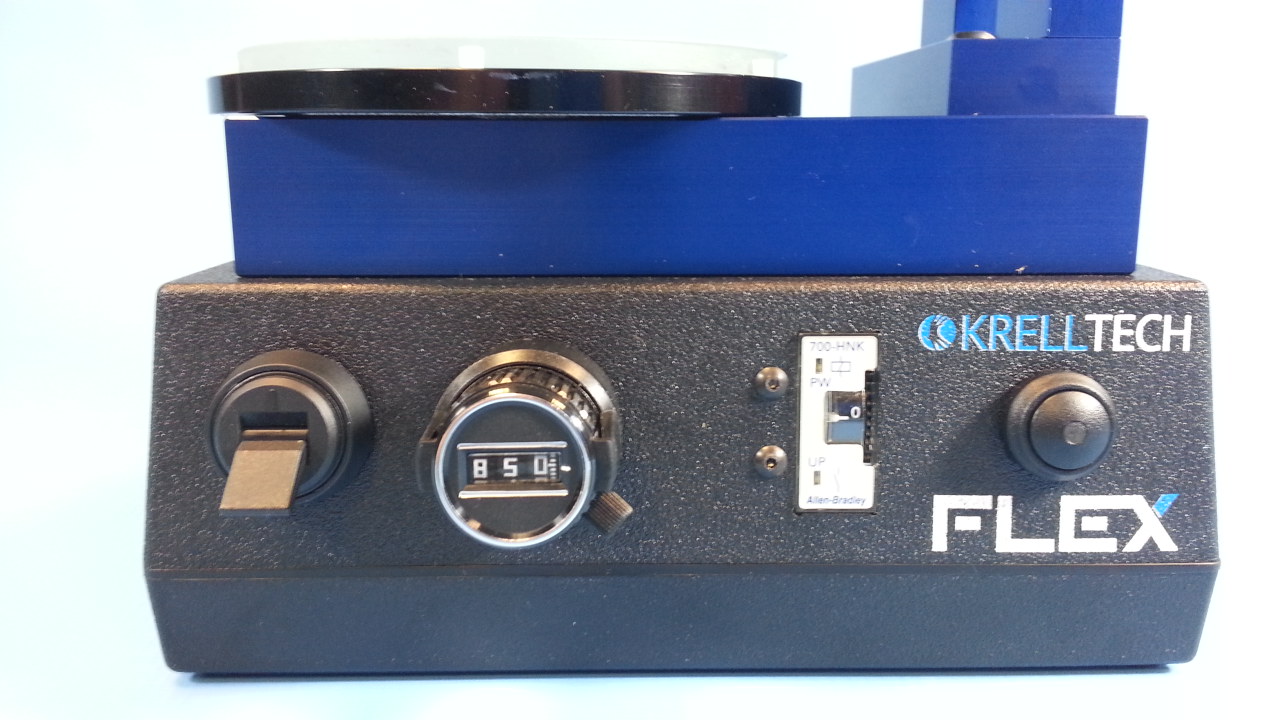

Krell FLex™ FLX2-01 Waveguide Polisher
Model Number:FLX2-01Brands:KrellRichen Code:87007800

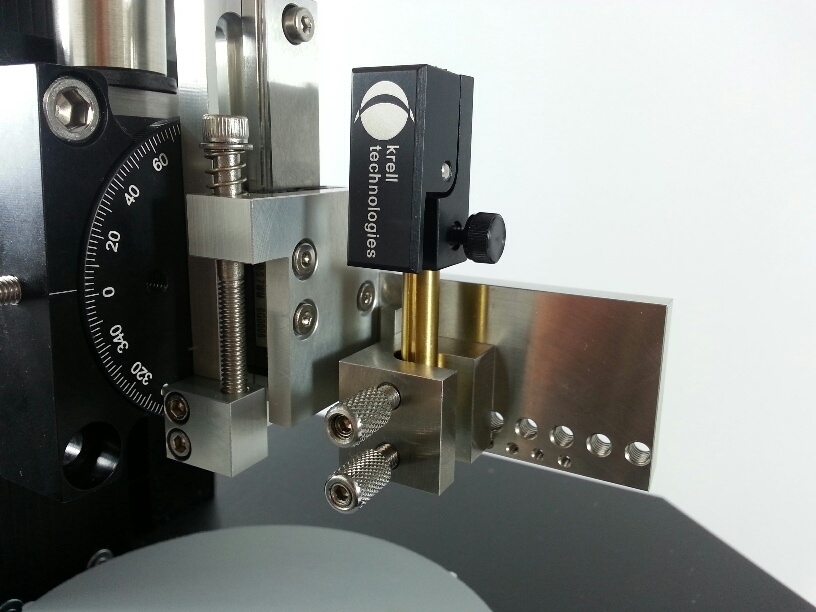

FLex™ is designed for the costeffective processing of waveguides, PLCs, optical chips, and fiber arrays. Its universal carrier secures a variety of component dimensions using the unique “Slide and Guide™” locking mechanism. Components can be polished with either flat or angled edges. Polishing is controlled via precision linear translation and adjustable pressure application. This produces consistent and repeatable polish yields.

FLex™ is designed for the costeffective processing of waveguides, PLCs, optical chips, and fiber arrays. Its universal carrier secures a variety of component dimensions using the unique “Slide and Guide™” locking mechanism.

Components can be polished with either flat or angled edges.Polishing is controlled via precision linear translation and adjustable pressure application.This produces consistent and repeatable polish yields.


Features

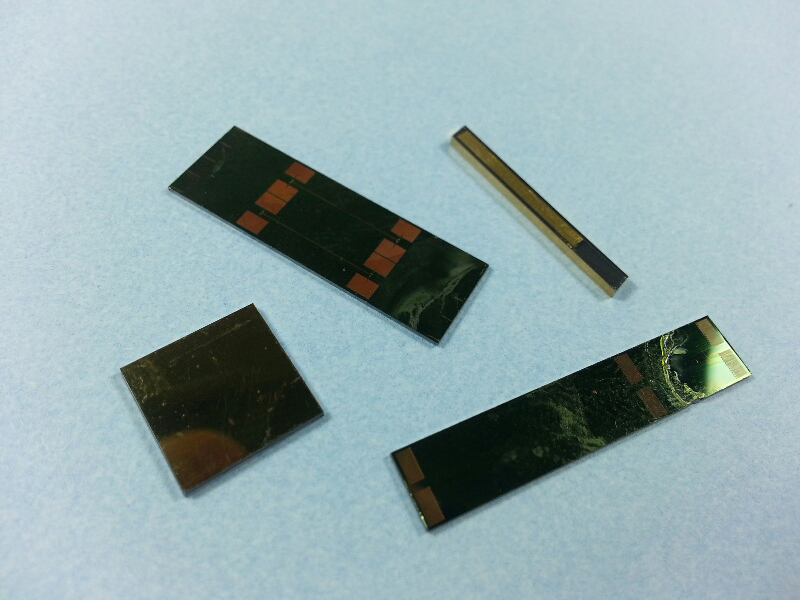

• Processes waveguides and optical chips
• Adjustable for varying dimensions

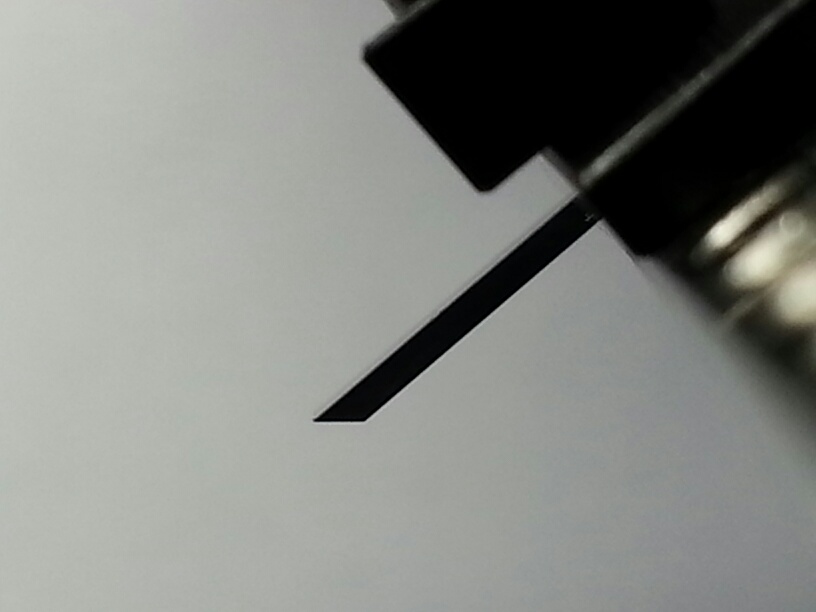

• Flat or angle polishing

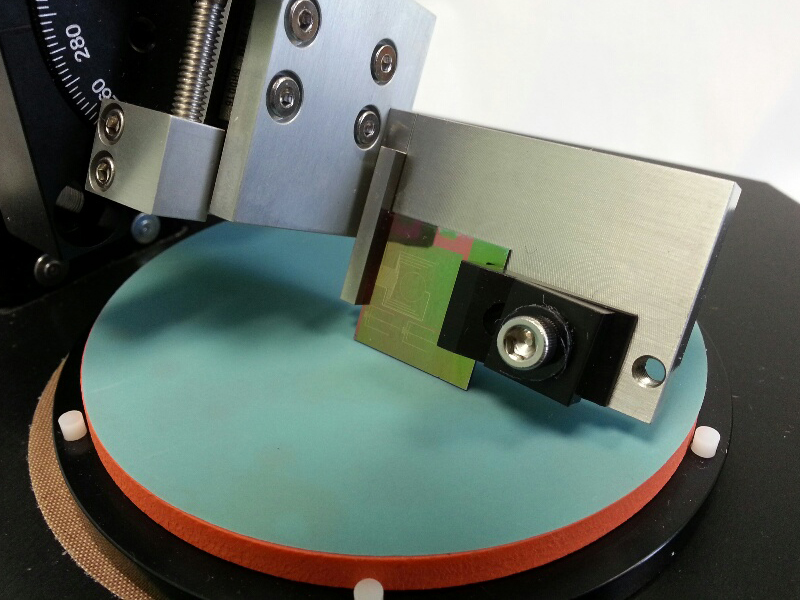

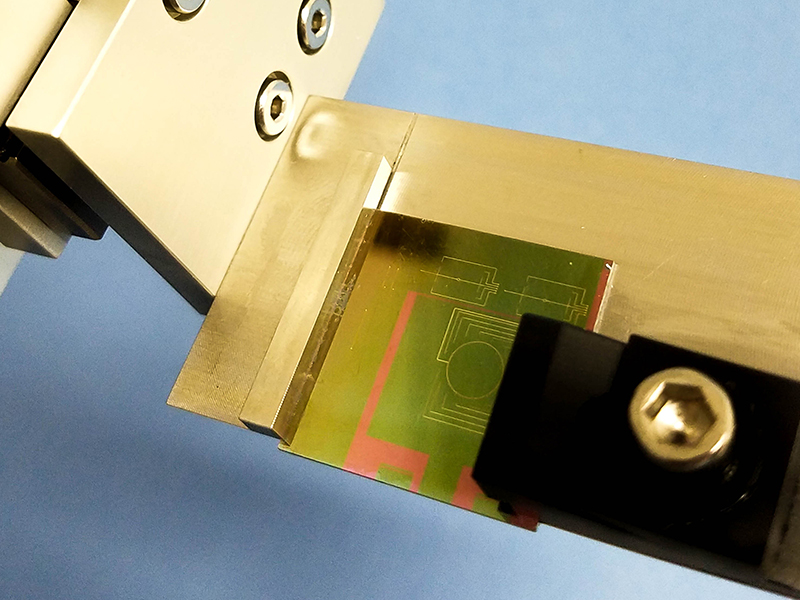

• Slide and guide™ Component holding without wax or epoxy
• Optional in-line video inspection

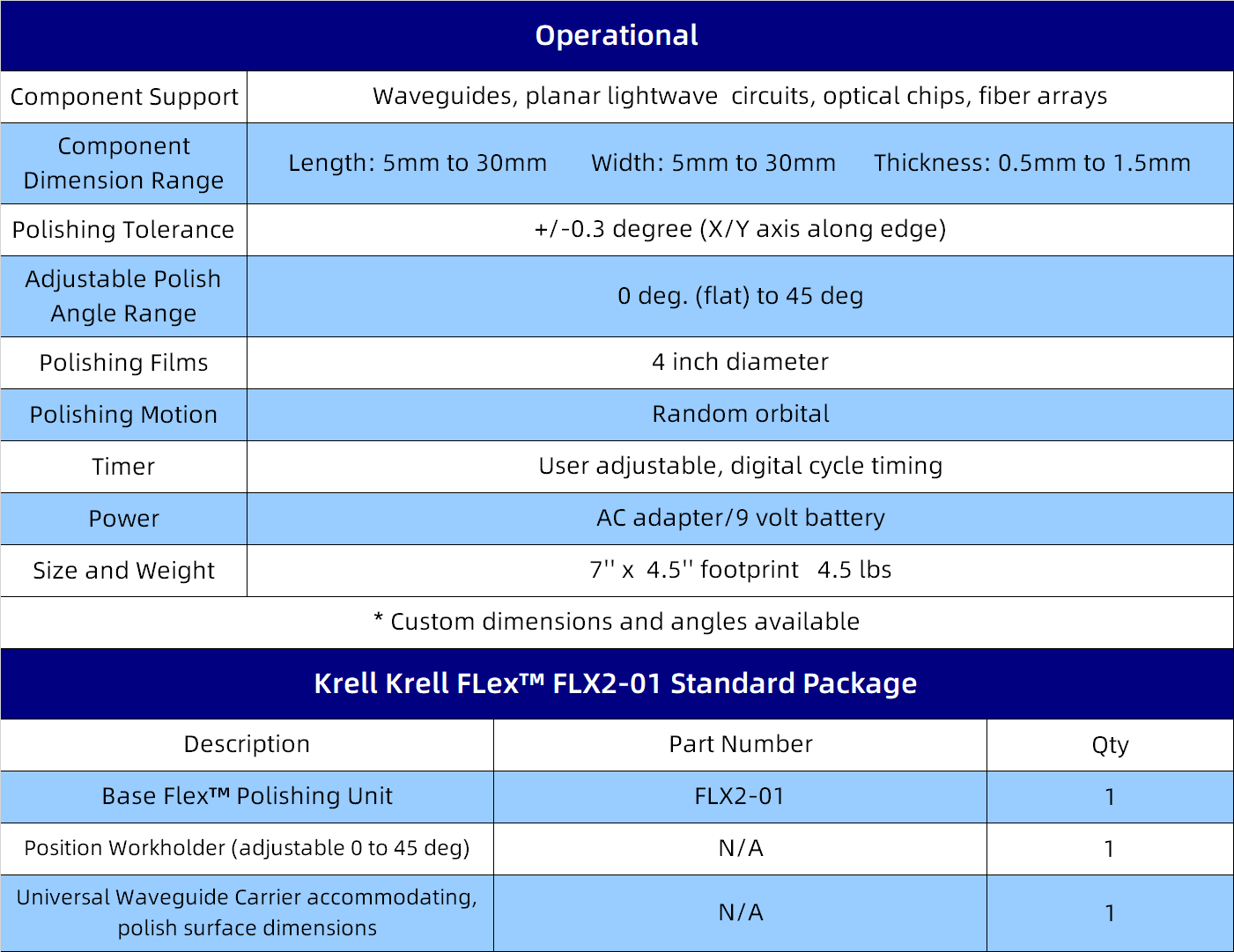

规格参数(英文)

Q: Can this unit also polish FC connectors?
A: Accessories are available to convert the fixture to support FC connectors.

Q: Hello, We are interesting in a polisher but would like to run DI water while polishing. Is this OK to use water with these polishers?
A: Depending upon the particular application, an individual polishing step may be processed either dry or with water. Water tends to provide better surface finish when used on the final step. Just a couple light sprays of water on the film is sufficient.

Q: Is there a means to monitor the polishing process?
A: Real-time video monitoring is available with the NOVA™ system. Please view this product on our website.

Q: Is there an adapter that will convert this polisher into a bare fiber polisher?
A: Yes, our Bare Fiber Mount converts the waveguide fixture for bare fiber polishing. But we recommend NOVA polisher to do the job.


Q: Is video inspection available with FLex?
A: If you require video inspection of waveguides, NOVA™ will be required.
