Q: PM fiber alignment: how well in angle can you set the stress axis? Another way, when I couple two fibers together what the cross coupling will be. Thanks
A: Using our SV10 Surface Inspection Videoscope combined with our measurement software, PM stress member alignment repeatability is about +/-1 degree.

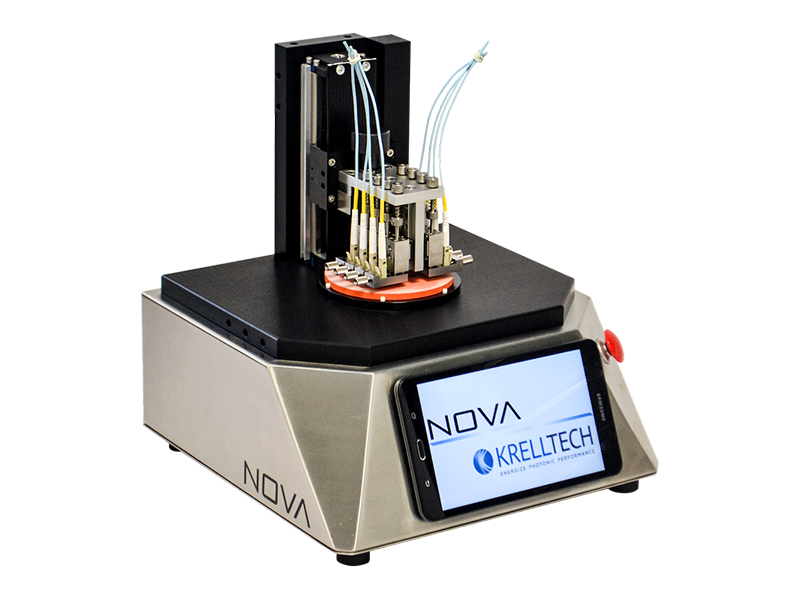

Q: What size polishing discs are used with NOVA™?
A: This polisher uses 4" (4 inch) diameter polishing films, rubber pads and glass disks.
Q: Does the NOVA™ offer a way to support the cables above the machine while polishing?
A: A set of cable management arms are included with the base NOVA. The NOVA™ design also allows for the interfacing of custom cable fixtures.
Q: Is it possible to have different inserts for different connectors on the same 8-position NOVA™?
A: Yes, an individual workholder fixture can be configured with various connector types and polishing positions.
Q: Is the attached a NOVA™ polisher?
A: No, it is a SpecPro
Q: I attached a picture of a product I am interested in. Can you tell me the name and part number of the attached?
A: There was no attachment provided.
Q: I attached a picture of polishing film and pads. Will this size work with the NOVA™?
A: They appear to be all 4" in diameter, so yes.
Q: Is the attached compatible with a NOVA™ polisher?
A: No, the workholder in the picture you provided was for a Scepter Polisher.
Q: How is the z axis lowered to the polishing surface?
A: It uses a linear stage that is controlled via tablet.
Q: Is there a warranty on all parts?
A: Yes, up to 1 year.
Q: Is there an emergency switch button?
A: Yes
Q: What is the warranty period?
A: 1 year on parts
Q: Is this base capable of interchanging workholder/fixtures?
A: Yes
Q: Are these available for angled MT Connectors?
A: Yes
Q: Do you offer process development?
A: We do, however on a basis to basis application.
Q: What film size does NOVA use?
A: 4 inch diameter polishing film.
Q: If I have an 8 position polishing jig, can I polish less than 8 connectors?
A: Yes, any number of connectors can be polished.
Q: What is the maximum number of SC connectors that can be polished with NOVA?
A: NOVA™ can polish 8 SC/UPC or SC/APC connectors.
Q: What size film does NOVA use?
A: NOVA™ uses 4 inch diameter polishing film, rubber pads and glass disks.
Model Number：SFP-560A3C
Brand：SEIKOH GIKEN
Richen Code：80184900
Model Number：SCP-200X2
Brand：Krell
Richen Code：87026600
Model Number：DScope-PM/PM Aligner
Brand：DATA-PIXEL
Richen Code：83005000
Model Number：FLX2-01
Brand：Krell
Richen Code：87007800
Model Number：SPR-3
Brand：SEIKOH GIKEN
Richen Code：80171900
Model Number：SCP-200
Brand：Krell
Richen Code：87007200
Model Number：Trig LT™
Brand：Krell
Richen Code：87000200
Model Number：TG-200
Brand：Krell
Richen Code：87000100
