DATA-PIXEL  D SCOPE High quality digital benchtop microscope (Auto focus X400 magnification)

This unique microscope combines high quality optics with a modern and ergonomic design ideally suited to fiber optic applications.

Until the D Scope, most microscopes were suffering from poor illumination quality yielding variable and non-reproducible image quality even amongst scopes of the same kind.
With Blink Automated Inspection plugin, the D Scope is able to detect and measure automatically scratches and defects compatible with Industry Standards or customized parameters.

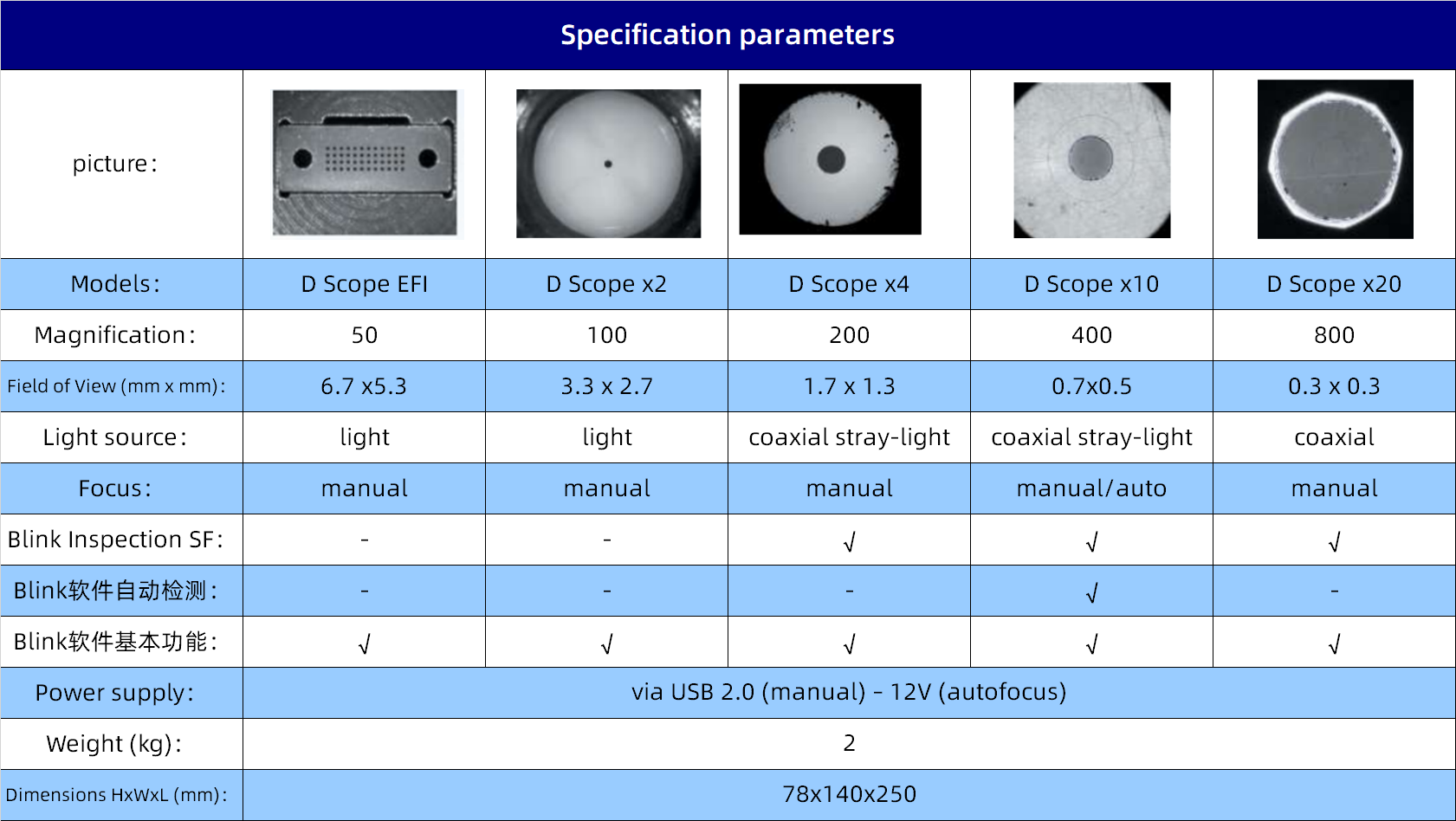

D Scope family is available with magnification from x200 to x800.

Features
• True Koehler optical design for homogeneous lighting
• Real time detection and analysis of surface defects with Blinksoftware
• Independent gain and contrast levels for fiber and ferrule regions
• Adaptors for all PC & APC, single or multi-fiber connectors
• High speed UsB 2.0 for live digital image
• Deep blue long life LED light source

• Second stray-light source for surface cleanliness inspection (optional)
• Ergonomic fine focus control
• Automation capabilities
• USB powered-no external power supply needed

• Compatible with desktop pc, laptop, tablet Pc

Standard Fiber Holders：
