The Gold Series Precision Rubber Pads took Domaille Engineering over three years to develop. The initial request came from several OEM clients who noticed a pattern in their rejection levels. The root cause of the rejections was a variation in the durometer of their rubber backing pads, which was changing the end face geometry. Most commercially available rubber pads for fiber optic polishing are not tested for durometer and have a wide range of variation between lots of rubber (+/-5 durometer or more is very common). Domaille worked with several OEM clients to develop and document accurate testing methods.
The rubber processing looked at refined materials, mixing technology, and processing methods. Combined with the accurate testing, Domaille was finally able to come up with a repeatable process capable of holding the durometer to within +/- 2 Shore A when tested at 71°+/-1 F. The Gold Series Precision Rubber Locking Pads are also available for purchase.

The finest Rubber Pad in the marketplace!

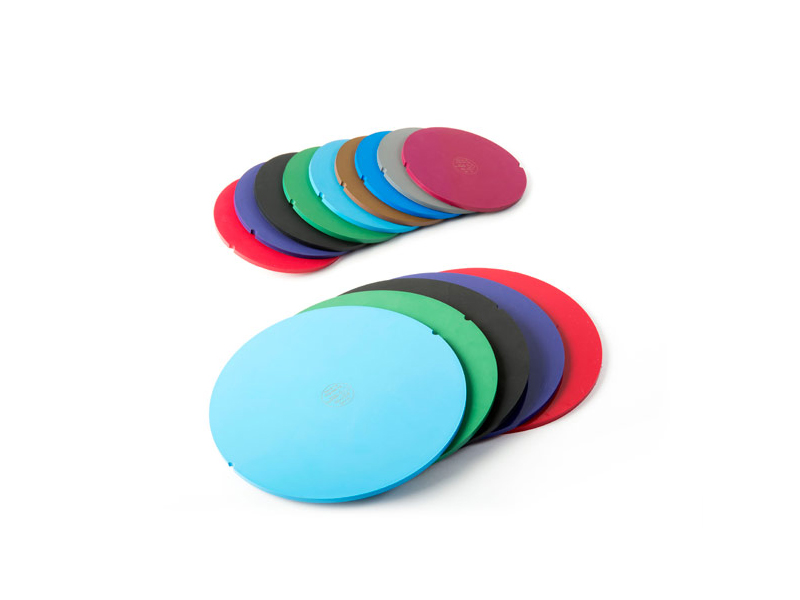

Domaille Engineering’s Gold Series line of precision rubber pads used for polishing optical fiber connectors are specially designed to control process variation. They feature actual durometer readings, durometer range of +/- 2 (Shore A), color coding for visual identification, Dry Grab
high glass non-slip surface for adhering abrasive film, precision ground to .02mm tolerance serialized and date coded for data tracking.

Benefits at a Glance:
• Actual known durometer for consistent polishing results
• Precision +/-2 durometer ranges
• Dry Grab high gloss anti-slip surface for positive abrasive film adherence
• Actual durometer documented on pad
• Color coded, serialized and date stamped for visual identification and data tracking
• Locking or standard models
• 5” and 8” diameter sizes available in 40-95 durometer increments

Recommended Products
Recommended products for use with the Gold Series Precision Rubber pads include:
• Gold Series Locking Rubber Pads
• EZ Lock Platen
• Glass Plate Options
• EZ Abrasive Kit

Order Information

Richen Code	Domaille Part Number	Description	Image
81048900	PM12101-50L	Domaille Engineering 5-inch, 50 durometer Locking Rubber Pad for polishing fiber optic connectors - Red
81025300	PM12101-55L	Domaille Engineering 5-inch, 55 durometer Locking Rubber Pad for polishing fiber optic connectors - Rust
81025500	PM12101-60L	Domaille Engineering 5-inch, 60 durometer Locking Rubber Pad for polishing fiber optic connectors - Blue
81025700	PM12101-65L	Domaille Engineering 5-inch, 65 durometers, Locking Rubber Pad for polishing fiber optic connectors - Dark Blue
81025800	PM12101-70L	Domaille 5 Inch 70 durometer locking rubber pad - Violet
81026000	PM12101-75L	Domaille Engineering 5-inch, 75 durometers, Locking Rubber Pad for polishing fiber optic connectors - Brown
81026200	PM12101-80L	Domaille Engineering 5-inch, 80 durometer, Locking Rubber Pad for polishing fiber optic connectors - Green
81026400	PM12101-85L	Domaille 5 Inch 85 durometer locking rubber pad - Grey
81026600	PM12101-90L	Domaille Engineering 5-inch, 90 durometer Locking Rubber Pad for polishing fiber optic connectors - Black
81026700	PM12101-95L	Domaille Engineering 5-inch, 95 durometers, Locking Rubber Pad for polishing fiber optic connectors - Yellow
81025000	PM12101-50	Domaille 5 Inch 50 durometer rubber pad - Red
81025200	PM12101-55	Domaille 5 Inch 55 durometer rubber pad - Rust
81025400	PM12101-60	Domaille 5 Inch 60 durometer rubber pad - Blue
81025600	PM12101-65	Domaille 5 Inch 65 durometer rubber pad - Dark Blue
81032200	PM12101-70	Domaille 5 Inch 70 durometer rubber pad - Violet
81025900	PM12101-75	Domaille 5 Inch 75 durometer rubber pad - Brown
81026100	PM12101-80	Domaille 5 Inch 80 durometer rubber pad - Green
81026300	PM12101-85	Domaille 5 Inch 85 durometer rubber pad - Gray
81026500	PM12101-90	Domaille 5 Inch 90 durometer rubber pad - Black
81048100	PM12101-95	Domaille 5 Inch 95 durometer rubber pad - Yellow
81026800	PM12108-45L	Domaille 8 Inch 45 durometer locking rubber pad - Dark Green
81026900	PM12108-50L	Domaille 8 Inch 50 durometer locking rubber pad - Red
81027000	PM12108-55L	Domaille 8 Inch 55 durometer locking rubber pad - Rust
81027100	PM12108-60L	Domaille 8 Inch 60 durometer locking rubber pad - Blue
81027200	PM12108-65L	Domaille 8 Inch 65 durometer locking rubber pad - Dark Blue
81027300	PM12108-70L	Domaille 8 Inch 70 durometer locking rubber pad - Violet
81027400	PM12108-75L	Domaille 8 Inch 75 durometer locking rubber pad - Brown
81027500	PM12108-80L	Domaille 8 Inch 80 durometer locking rubber pad - Green
81027600	PM12108-85L	Domaille 8 Inch 85 durometer locking rubber pad - Gray
81027700	PM12108-90L	Domaille 8 Inch 90 durometer locking rubber pad - Black
81048200	PM12108-95L	Domaille 8 Inch 95 durometer locking rubber pad - Yellow
