Maximum productivity

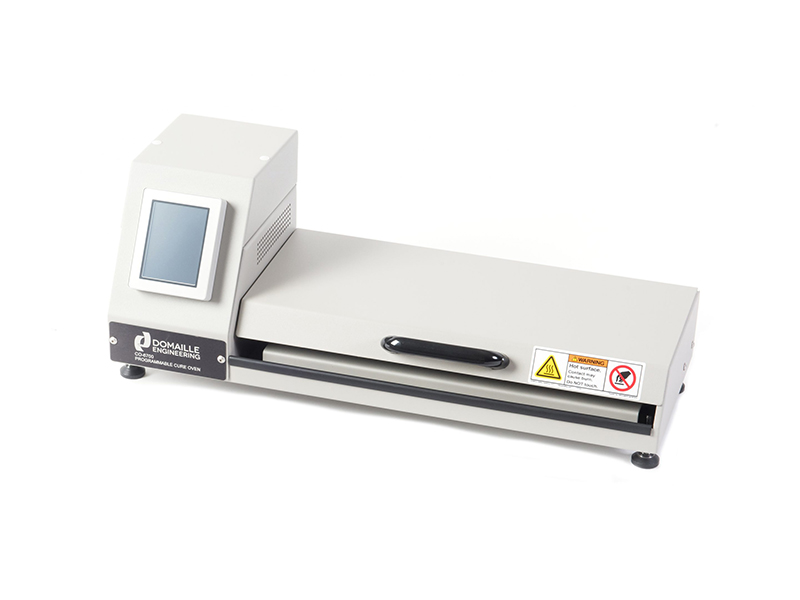

The CO-6700 Curing Oven is equipped with a high-resolution user interface, which allows you to control your curing process more effectively. A variety of modes are available on this HMI screen, including temperature hold, timed, twin timed, step, and ramp. The universal cure oven maximizes productivity when curing epoxy on single- and multi-fiber connectors. A smart factory software solution is compatible with the DE Data Link™ curing ovens CO-6700 .

Advanced User Touchscreen Interface
The new Universal Cure Oven with high resolution 320X240 color user interface allows more control of your curing processes. Designed to maximize productivity when curing epoxy on single and multi-fiber connectors. It utilizes a modular carrier tray for efficient assembly and loading of up to 24 MT connectors or 48 single fiber connectors per batch.

Features
• Specifically designed for MTP/MPO connector epoxy curing with the tightest thermal pattern in the industry
• New user interface touchscreen
• Utilizes carrier trays for EZ loading and maximum productivity, cures in either horizontal or vertical position.
• Audible alarm
• Multiple modes: temp. hold, timed, twin timer and step ramp heat profiling
• Password protect capabilities
• Multi-Lingual function
• Maximum temperature 150° C
• Celsius/Fahrenheit option
•  Expansion capability for custom requirements (as requested)
• Available in 120v configuration

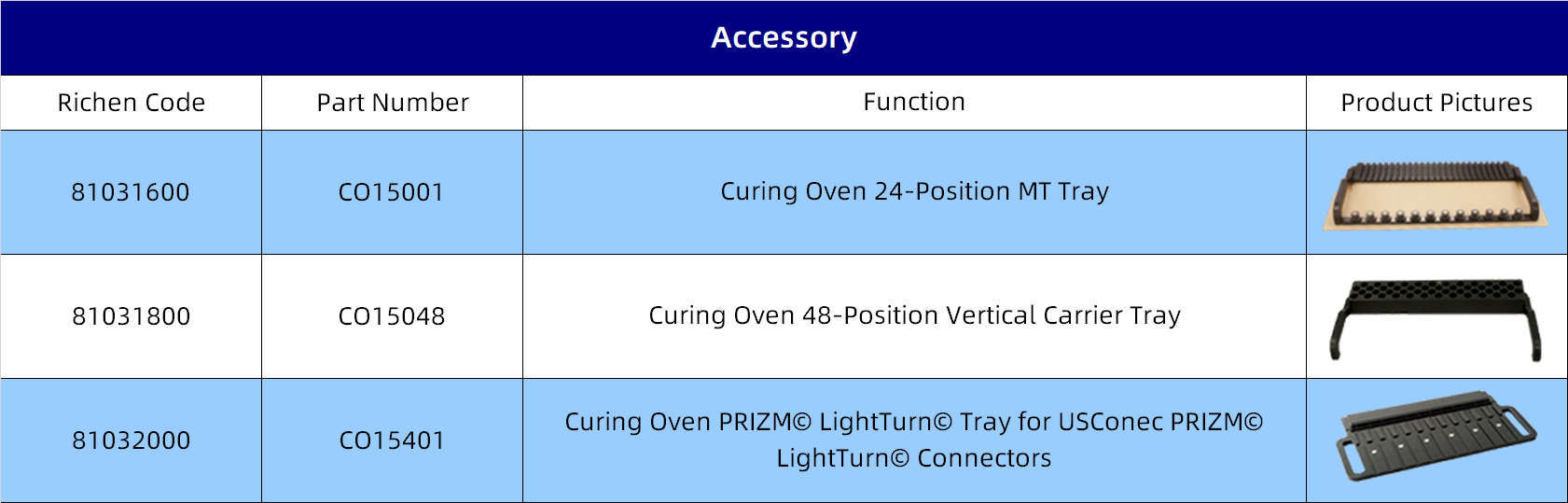

• Multiple tray options for additional connector styles
