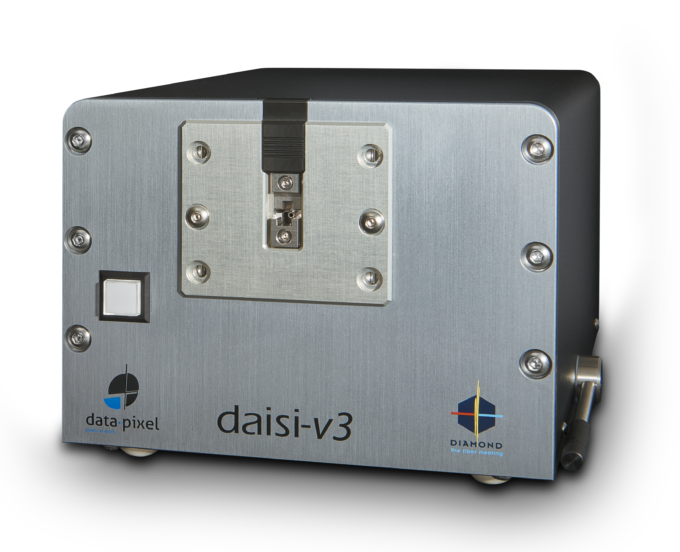

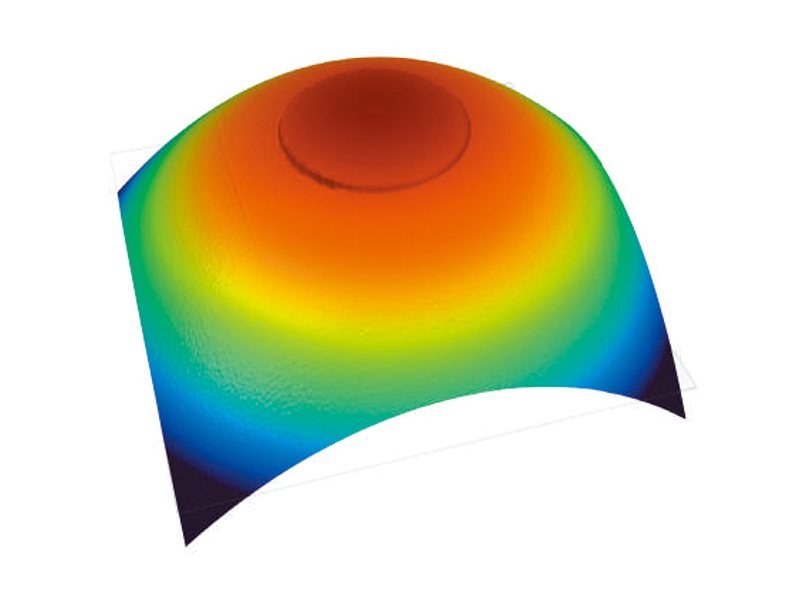

The ultimate production interferometer for measuring end-face geometry on single-fiber connectors, equipped with a revolutionary «no-exterior-moving-parts» mechanical design.
The unit combines a x400 microscope and an interferometer in order to control connectors after polishing in a very short time.
With the Blink software, operators have the easiest way to produce customised control reports.
DAISI-V3 is fully compatible with Industry measurement Standards.

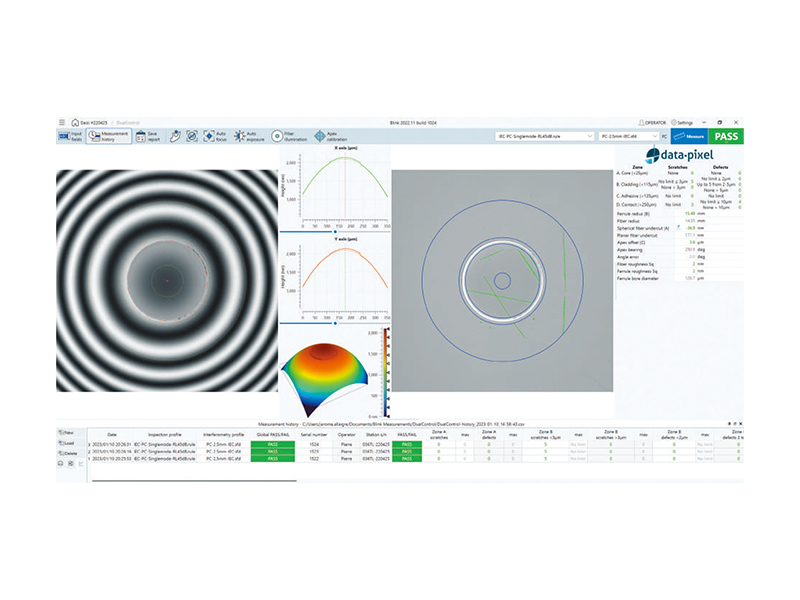

Blink is a software platform common to all Data-Pixel products. Dedicated plugins support the Interferometry range of products : 3D Scope-V2, Daisi-V3 and Daisi MT-V3. PDF, HTML and CSV reporting capability with extensive database support (SQL Server, MySQL, ODBC, ORACLE,…). OLE automation support is available for dedicated application.

Features
• Measurement of PC and ApC connectors, ferrules and bare fibers
• True phase-shifting interferometer
• Non-contact measurement
• Smart autofocus, focus only when required
• Servo-controlled reference mirror for automatic apex calibration
• Robust Motor driven automated Flange locking Mechanism
• Vibration insensitive
• Easy and fast switching from PC to APC, no change of fiberholder required
• Compliance with Industry standards for InterferometerMeasurement
• Intuitive BLlNK software, with data-base connectivity
• Compatible with desktop pc, laptop, tablet PC

Richen Code	Category	Part Number	Part Number （Used）	Describe	Applicable equipment	Product images
	Flange	10-FL-001375	DPLC-DAISI-1.6-V2	Flange 1.60mm, automatic, with ceramic sleeve. (Minimum collar length 4.00mm)	Daisi-V2 Daisi-V3 Daffi-SF
83006600	Flange	10-FL-001379	DPLC-HFOC-V2	Flange 2.50mm OPTITAP, automatic for HFOC connector	Daisi-V2 Daisi-V3 Daffi-SF
83006800	Flange	10-FL-001380	DPLC-DAISI-1.25-V2	Flange 1.25mm, automatic, with Hard Metal sleeve	Daisi-V2 Daisi-V3 Daffi-SF
83012800	Flange	30-FL-001383	DPLC-DAISI-MT-MANU-1,25-SL	Flange 1.25mm, manual, with Hard Metal sleeve	Daisi-V2 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
83012900	Flange	30-FL-004540 30-FL-001384（停用）	DPLC-DAISI-MT-MANU-2,5-SL	Flange 2.50mm, manual, with Hard Metal sleeve	Daisi-V2 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
80168500	Flange	30-FL004538 30-FL-001396（停用）	DPLC-DAISI-2.5-V2 DAISI-2.5-HS	Flange 2.50mm, automatic, with Hard Metal sleeve	Daisi-V2 Daisi-V3 Daffi-SF
80145900	Flange	30-FL-001398	N/A	Flange 1.60mm, manual, with Ceramic sleeve	Daisi-V2 Daisi-MT-V2 Daisi-V3 Daisi-MT-V3 Daffi-MT-12 Daffi-MT-16
	Flange	30-FL-001400	N/A	Flange 2.00mm, manual, with ceramic sleeve (minimum collar length 5.00mm)	Daisi-V2 Daisi-MT-V2 Daisi-V3 Daisi-MT-V3 Daffi-SF Daffi-MT-12 Daffi-MT-16
80140800	Flange	30-FL-001639	DPLC-DAISI-2.5-F2-A	Flange 2.50mm, automatic, V Groove, revision F2, large with modified front plate, large (for standard ferrules with minimum length of 5.40mm)	Daisi-V2 Daisi-V3 Daffi-SF
80140700	Flange	30-FL-001651	DPLC-DAISI-1.25-F2-A	Flange 1.25mm, automatic, V Groove, revision F2, Large with modified front plate, large (for standard ferrules with minimum length of 4.10mm)	Daisi-V2 Daisi-V3 Daffi-SF
	Flange	30-FL-001659	DPLC-DAISI-1.0-F2	Flange 1.00mm, automatic, V-groove, F2 version, (for minimum length of 4.00mm collar)	Daisi-V2 Daisi-V3 Daffi-SF
80156800	Flange	30-FL-001782	OPP14-FL OPP184-FL	LC double flange for interferometer from French Data Pixel company, 1.25mm, automatic locking, vertical type	Daisi-V2 Daisi-V3 Daffi-SF
	Flange	30-FL-001378	DPLC-DAISI-SMA-V2	Flange 3.17mm SMA, straight-hole type (stronger against heavy cable weight but less accurate)	Daisi-V2 Daisi-MT-V2 Daisi-V3 Daisi-MT-V3 Daffi-SF
83015000	Flange	30-FL-002302	FLANGE: OPP143	1.25mm DUPLEX, specific for SENKO CS connectors, (recommended for PC as more ergonomic and avoids potential damages to ferrule endface during insertion) NB: this adapter in compatible with PC connectors only, not APC	Daisi-V2 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
83019800	Flange	30-FL-002364	OPP113	Flange 1.25mm, automatic, V Groove, revision F2, XXL with modified front plate XXL, for short ferrule (for ferrule with minimum length 1.60mm). NB: due to the large aperture of this XXL front plate, it is not possible to mount any adapter on the flange, so no possibility to perform APC measurement.	Daisi-V2 Daisi-V3 Daffi-SF
	Flange	30-FL-002546	OPP197	Flange 0.60 mm, automatic, V Groove, revision F2, XXL with modified front plate, XXL (minimum ferrule length 2.60mm)	Daisi-V2 Daisi-V3 Daffi-SF
80163600	Flange	30-FL-002603	OPP185FL OPP144-FL-DAISI	Fixture 1.25mm double, manually locked, horizontal type	Daisi-V2 Daisi-V3 Daffi-SF
80164900	Flange	30-FL-002604		Fixture 1.25mm double, manually locked, horizontal type	Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-MT-12 Daffi-MT-16 Daisi-V2 Daisi-V3 Daffi-SF
80167800	Flange	30-FL-002605	OPP14-MAN	Flange 1.25mm DUPLEX, manual, vertical, sleeve-type. NB: It must be used with the required adapter, depending on the connector to be measured	Daisi-V2 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
	Flange	30-FL-002948		Flange 1.60mm, manual, V Groove, revision T4 including Protective cap, black (specific for T4-revision flanges)	Daisi-V2 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
	Flange	30-FL-003038		Flange 2.50mm OPTITAP, large square, manual, for HFOC connector. NB: due to the variety of Optitap connectors, please send us samples of connectors so that we can check the compatibility with our flange.	Daisi-V2 Daisi-V3 Daisi-V3 Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-SF Daffi-MT-12 Daffi-MT-16
83000313	Adapter	10-AD-000408	DPLC-DAISI-E2000 3DS-V2-E2000	Adapter, PC and APC, 2.50mm E2000 (required for APC, recommended for PC as more ergonomic and avoids potential damages to ferrule endface during insertion)	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83006204	Adapter	10-AD-000552	DPLC-3DS-V2-SC DPLC-DAISI-SC	Adapter, PC and APC, 2.50mm SC with plastic parts (required for APC, recommended for PC as more ergonomic and avoids potential damages to ferrule endface during insertion)	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83000320	Adapter	10-AD-000553	DPLC-3DS-V2-FCW DPLC-DAISI-FCW	Adapter, PC and APC, 2.50mm FC Wide (required for APC, recommended for PC as more ergonomic and avoids potential damages to ferrule endface during insertion)	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83000321	Adapter	10-AD-000554	DPLC-3DS-V2-FCN DPLC-DAISI-FCN	Adapter, PC and APC, 2.50mm FC Narrow	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83000319	Adapter	10-AD-000555	DPLC-3DS-V2-MU	Adapter, PC and APC, 1.25mm MU	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83000315	Adapter	10-AD-001012	DPLC-DAISI-SC-CV2	Adapter, PC & APC, 2.50mm SC CV2, with metal parts	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
80142900	Adapter	10-AD-001013	DPLC-DAISI-LC-CV1-B 3DS-V2-LC	Adapter, PC and APC, 1.25mm LC-CV1-B, with metal parts	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
80163200	Adapter	30-AD-002509	OPP184-AD	Adapter, PC and APC, 1.25mm DUPLEX, specific for US CONEC MDC and MDC Jr connector	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83000322	Adapter	10-AD-001092	DPLC_DAISI_DIN	Adapter, PC and APC, DIN (+LSA+AVIM+AVIO)	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
	Adapter	10-AD-002808	OPP229-AD-D	Adapter, DMI and Mini-AVIM	3Dscope-V2 Daisi-V2 Daisi-V3 Daffi-SF
83008500	Adapter	30-AD-001095	DPLC-DAISI-E2000-H&S	Adapter, PC & APC, 2.50mm, specific for E2000 Alberino Huber & Suhner H&S	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
	Adapter	30-AD-001096	DPLC_DAISI_LX5	Adapter, PC & APC, LX5	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
	Adapter	30-AD-001103	DPLC-DAISI-LUXCIS OPP155	Adapter, PC & APC, 1.25mm Arinc 801	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
	Adapter	30-AD-001421	DPLC-DAISI-SC-FER-APC	Adapter, PC and APC, 2.50mm, specific for SC bare ferrule	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83010200	Adapter	30-AD-001591	DPLC-3DS-V2-LC-DUP-ADAPT	Adapter, PC and APC, 1.25mm LC DUPLEX standard	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
83010100	Adapter	30-AD-001701	DPLC-DAISI-LC-DUP-ADAPT-V2-CH	Adapter, PC only, 1.25mm LC DUPLEX standard. New champfers.	Daisi-V2 Daisi-V3 Daffi-SF
80156900	Adapter	30-AD-001975	OPP14-AD 30-AD-001783	Adapter, PC and APC, 1.25mm LC DUPLEX specific for UNIBOOT Intelli-Cross LCD POR	Daisi-V2 Daisi-V3 Daffi-SF
	Adapter	30-AD-002333	DAISI-E2000-R&M 30-AD-001093	Adapter, PC and APC, 2.50mm, specific for Alberino Reichle & de Massari R&M	Daisi-V2 Daisi-V3 Daffi-SF 3Dscope-V2
80163700	Adapter	30-AD-002601	OPP185AD	Adapter, PC, 1.25mm DUPLEX, specific for SENKO CS connectors	3Dscope-V2 Daisi-V2 Daisi-V3 Daffi-SF
80163300	Adapter	30-AD-002607	OPP204-AD	Adapter, PC and APC, 1.25mm DUPLEX, specific for SENKO SN connector	Daisi-V2 Daisi-V3 3Dscope-V2 Daffi-SF
	Adapter	30-AD-002988	OPP235	Adapter, PC and APC, 1.25mm, specific for LCR	3Dscope-V2 Daisi-V2 Daisi-V3 Daffi-SF
80178200	Adapter	30-AD-003035	OPP185-AD-DAISI-APC	Adapter, PC and APC , 1.25mm DUPLEX, specific for SENKO CS connectors	Daisi-V2 Daisi-V3 Daffi-SF Daisi-MT-V2 Daisi-MT-V3 Daisi-MT-FP Daffi-MT-12 Daffi-MT-16
